Diagram 28/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

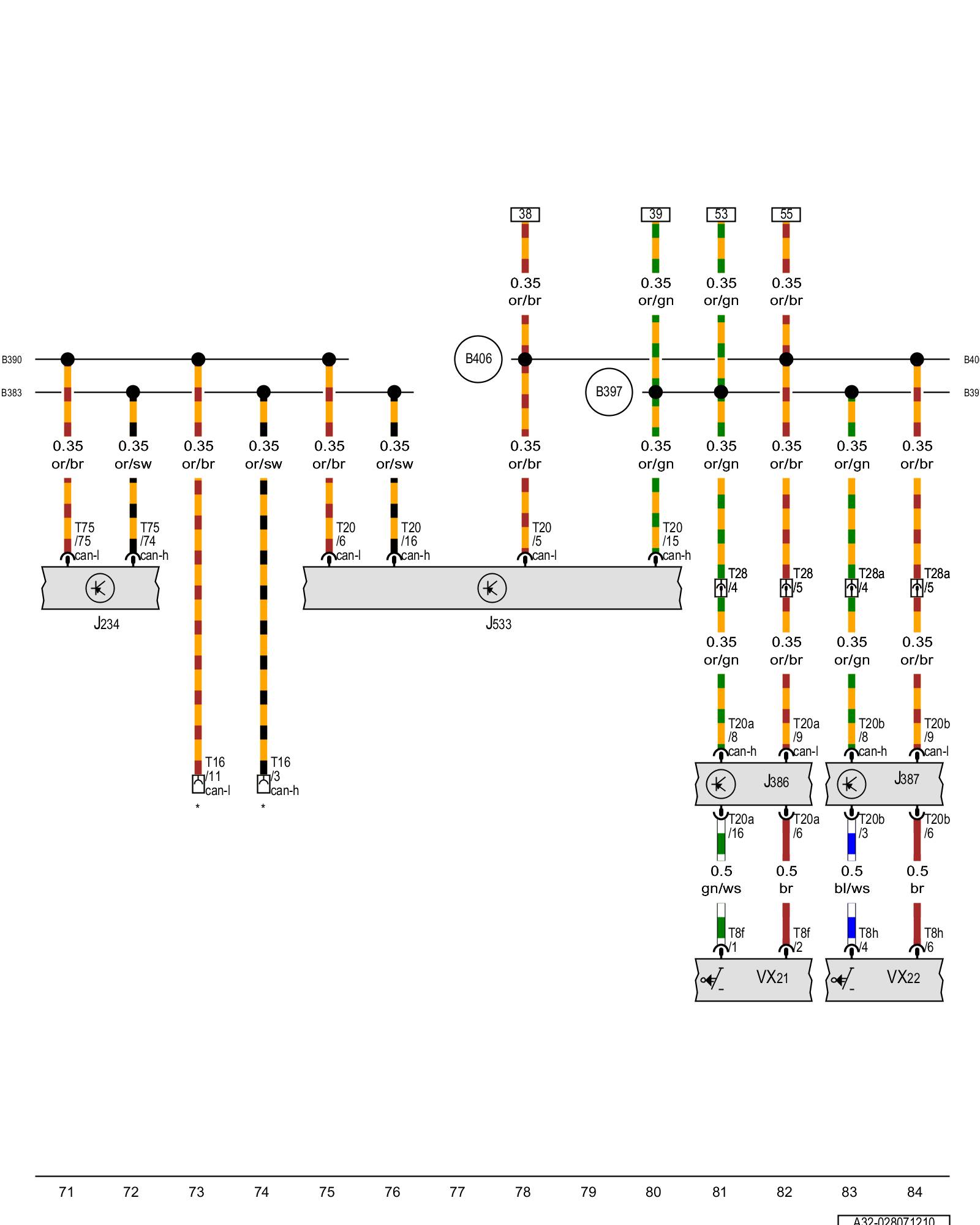

Airbag control module, Driver door control module, Front passenger door control module, Data bus on board diagnostic interface, Driver door lock unit, Front passenger door lock unit





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Locations

J386 - Driver door control module Locations

J387 - Front passenger door control module Locations

J533 - Data bus on board diagnostic interface Locations

T8f - 8-pin connector

T8h - 8-pin connector

T16 - 16-pin connector

T20 - 20-pin connector Locations

T20a - 20-pin connector Locations

T20b - 20-pin connector Locations

T28 - 28-pin connector, on the left A-pillar

T28a - 28-pin connector, on the right A-pillar

T75 - 75-pin connector Locations

VX21 - Driver door lock unit

VX22 - Front passenger door lock unit

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Diagnostic connector

Previous Diagram 28/6 (Tracks 57-70)

Next Diagram 28/8 (Tracks 85-98)
