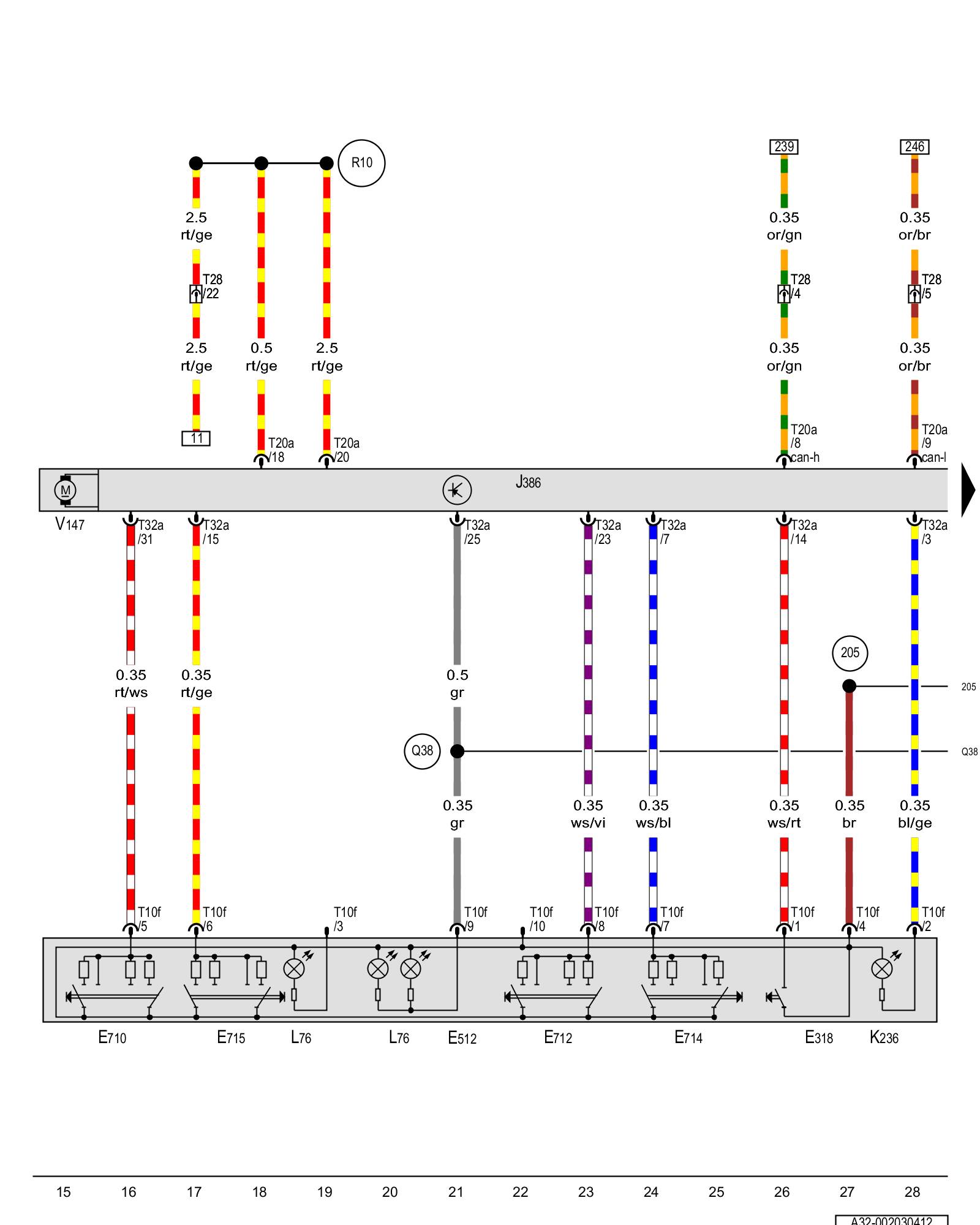

Diagram 2/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Child safety lock button, Power window control head in driver door, Driver power window button, Driver side rear power window button in driver door, Passenger side rear power window button in driver door, Front passenger power window button in driver door, Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E318 - Child safety lock button Power window Control Head in Driver Door -E40- / -E81- / -E53- / -E55- -E318-

E512 - Power window control head in driver door

E710 - Driver power window button

E712 - Driver side rear power window button in driver door

E714 - Passenger side rear power window button in driver door

E715 - Front passenger power window button in driver door

J386 - Driver door control module Locations Driver/Front Pass Door Control Module -J386- / -J387-

K236 - Child safety lock -activated- indicator lamp

L76 - Push button illumination bulb

T10f - 10-pin connector

T20a - 20-pin connector Locations

T28 - 28-pin connector, Left A-pillar, bottom

T32a - 32-pin connector Locations

V147 - Driver window regulator motor Locations

(205) - Ground connection (in driver door wiring harness)

(Q38) - Positive connection 1 (publication) (in power window wiring harness)

(R10) - Positive connection 1 (30) (in driver door wiring harness)
