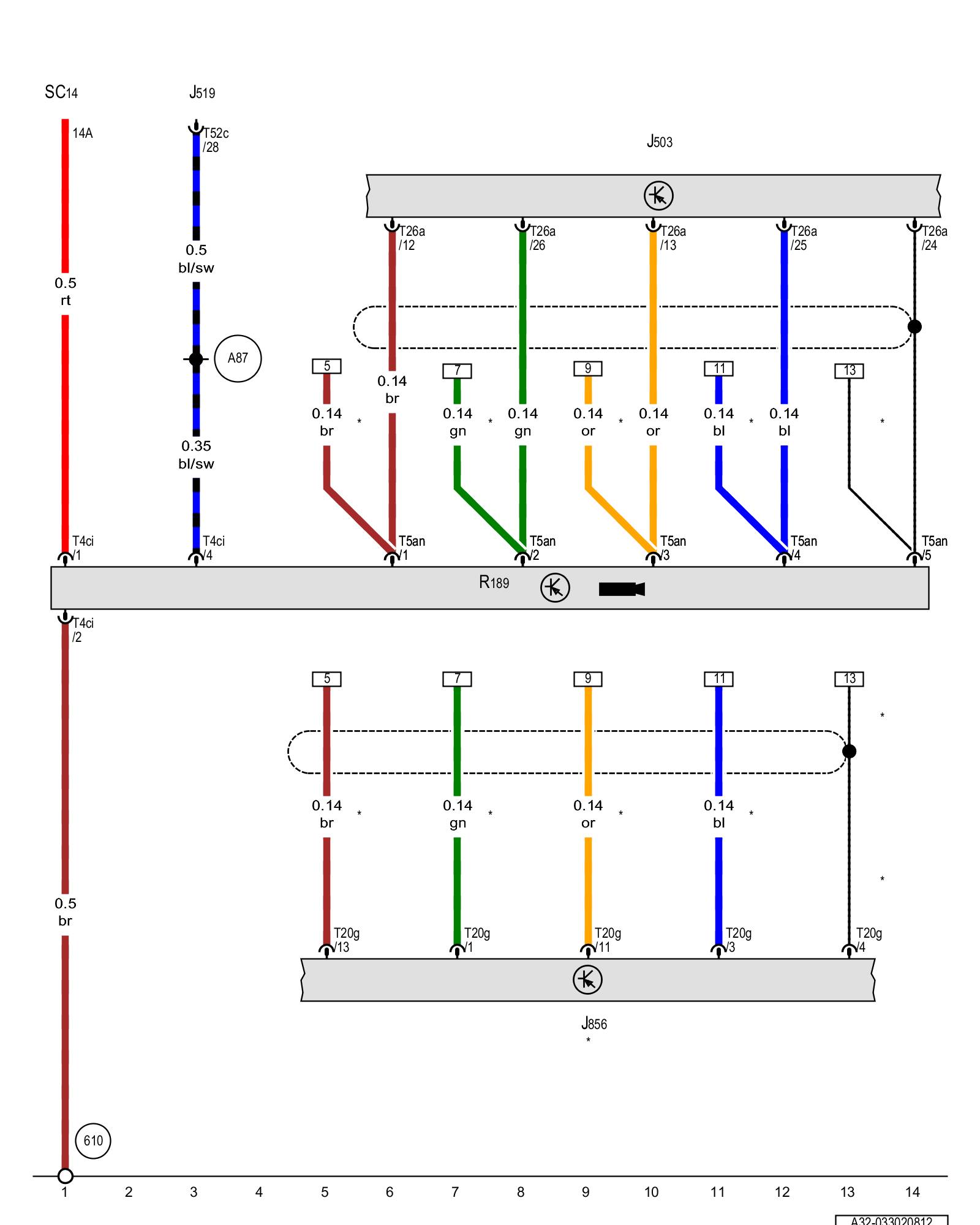

Diagram 33/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions








ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Locations

J519 - Vehicle electrical system control module Locations

J856 - Navigation system control module, under the front passenger seat

R189 - Rearview camera, on the rear lid handle

SC14 - Fuse 14 (on fuse panel C) Overview of fuse holder

T4ci - 4-pin connector

T5an - 5-pin connector

T20g - 20-pin connector

T26a - 26-pin connector

T52c - 52-pin connector

(610) - Audio ground connection under front center console Locations

(A87) - Back-up lamp connection (in instrument panel wiring harness)

* - Only for vehicles with Korea equipment
