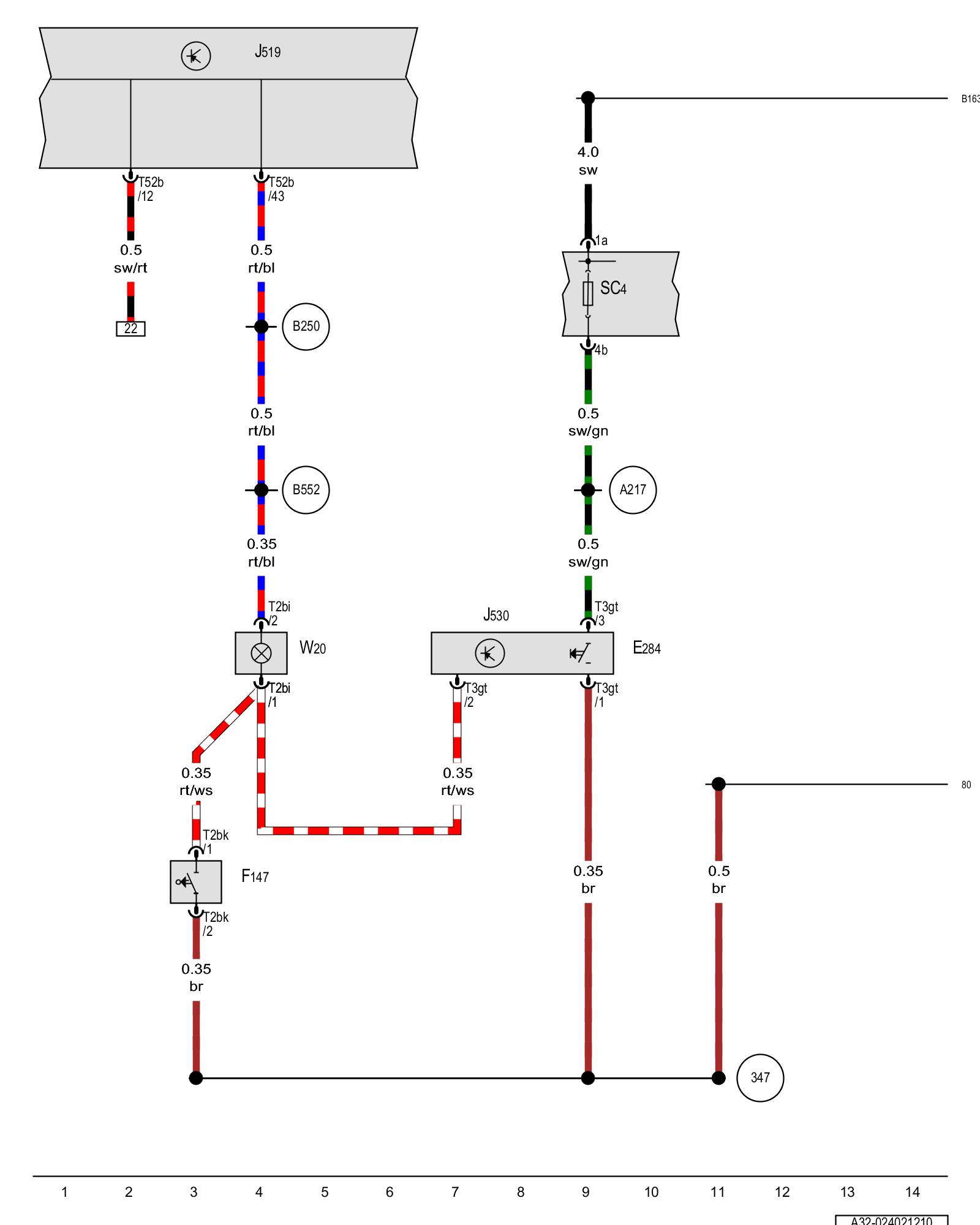

Diagram 24/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage door opener control head, Garage door opener control module, Fuse 4 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E284 - Garage door opener control head

F147 - Driver vanity mirror lamp contact switch

J519 - Vehicle electrical system control module Locations

J530 - Garage door opener control module

SC4 - Fuse 4 (on fuse panel C) Overview of fuse holder

T2bi - Double connector

T2bk - Double connector

T3gt - 3-pin connector

T52b - 52-pin connector

W20 - Driver vanity mirror lamp

(80) - Ground connection 1 (in instrument cluster wiring harness)

(347) - Ground connection (in roof wiring harness)

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B250) - Positive connection (in roof wiring harness)

(B552) - Positive connection 2 (in roof wiring harness)

Next Diagram 24/3 (Tracks 15-28)
