External Audio Source Connector (R199) Connection






External Audio Source Connector (R199) Connection

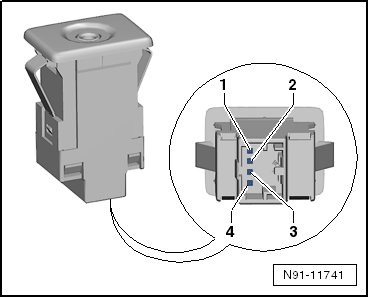

4-pin Connector





1. Audio signal, right

2. Audio ground

3. Audio signal, left

4. Audio ground
