Bench Seat Cover and Cushion

Bench Seat Cover and Cushion

• The illustration show the attaching points for the upholstery clips - 1 - in the Comfort version and - 2 - in the Sport version.

• The following describes removing and installing the cover and cushion on the Sport. Removing and installing the cover and cushion on the Comfort is identical.






Removing

- Remove the bench seat. Refer to => [ Seat Bench/Single Seat ] Seat Bench/Single Seat.

- Disconnect all the upholstery clips - arrow - on the bottom of the bench seat all the way around.

- Fold the cover up all the way around.

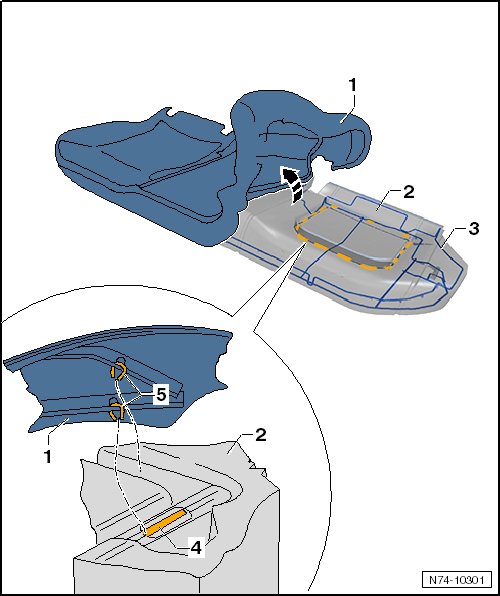

• The illustration shows the attaching the cover - 1 - on the Sport. Attaching the cover on the Comfort is identical.

- Fold up the cover on the sides.

- Remove all the upholstery clips - 5 - on the seat cover - 1 - from the cushion mounts - 4 -.

- Remove the cover - 1 - from the cushion - 2 - in - direction of arrow -.

- Remove the cushion - 2 - from the seat frame - 3 -.






Installation

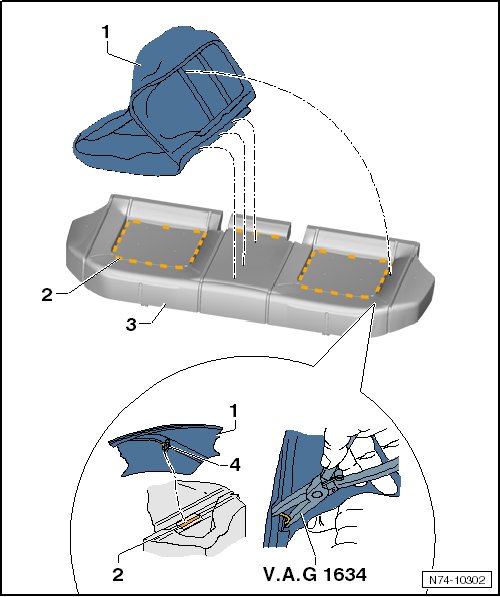

- Install the cushion - 3 - on the seat frame.

- Install the cover - 1 - on the cushion - 3 -.

- Attach the seat cover - 1 - to the cushion - 3 - with new upholstery clips - 4 - at the shown locations - 2 - using the upholstery clip pliers (V.A.G 1634).

- Fold up the cover - 1 - on the sides.






- Attach the cover all the way around the seat frame with new upholstery clips - arrow - with upholstery clip pliers (V.A.G 1634).






Further assembling is in reverse order of removal.
