Glove Compartment Handle

Glove Compartment Handle

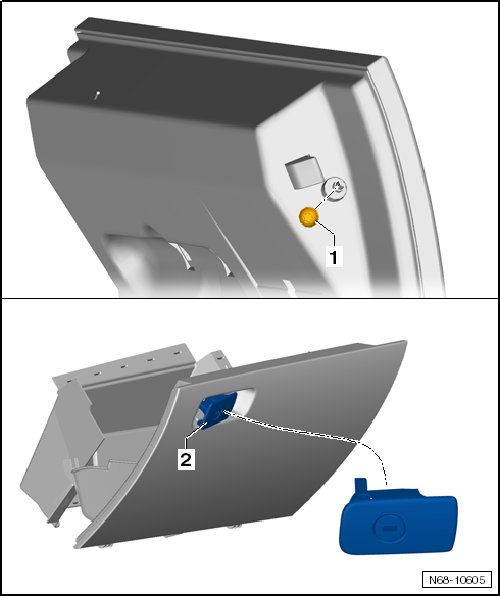

• The lock cylinder - 1 - cannot be removed separately. The release button - 2 - must be replaced.

Removing

- Open the glove compartment.

- Remove the bolt - 1 - and the unlock button - 2 - from the glove compartment.






Installation

- Install in reverse order of removal.
