Glove Compartment

Glove Compartment

Removing

- Turn off the ignition.

- Remove center console. Refer to => [ Center Console ] Service and Repair.

- Remove the trim from the center of the instrument panel.

- Remove the side instrument panel cover (front passenger side only). Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.

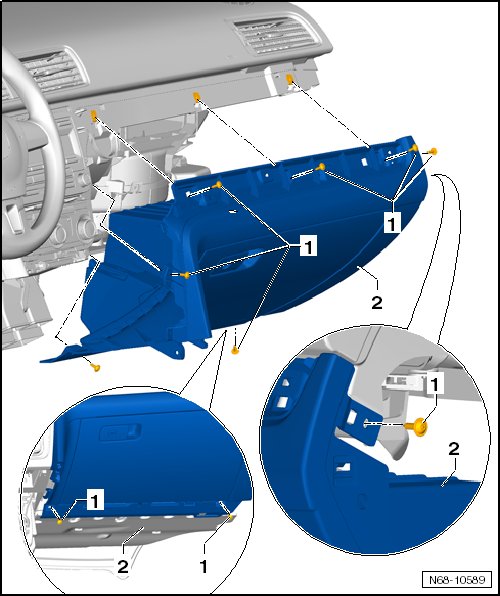

- Remove the screws - 1 - (1.5 Nm).

- Remove the glove compartment - 2 -.

- Disconnect any wiring harnesses and connectors (depending on the vehicle equipment level).






Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
