Bulkhead Noise Insulation

Bulkhead Noise Insulation

Left Bulkhead Noise Insulation

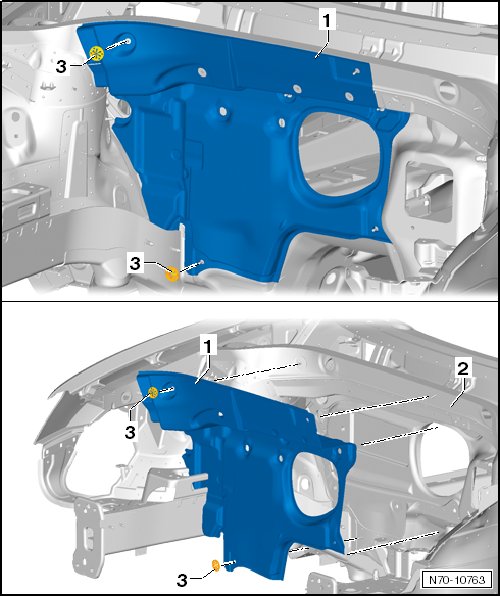

1 Left bulkhead noise insulation

• Reduces driving noise inside the passenger compartment

• Loosen the lock washers - 3 - to remove

• Remove the left bulkhead noise insulation from the stud bolts

• Install in reverse order of removal

2 Lock washer

• The number of lock washers may vary depending on the vehicle equipment.

Right Bulkhead Noise Insulation






1 Right bulkhead noise insulation

• Reduces driving noise inside the passenger compartment

• Loosen the lock washers - 3 - to remove

• Remove the left bulkhead noise insulation from the stud bolts

• Install in reverse order of removal

2 Bulkhead

3 Lock washer

• The number of lock washers may vary depending on the vehicle equipment.
