Front Door Body Side Molding Dimensions

Front Door Body Side Molding Dimensions

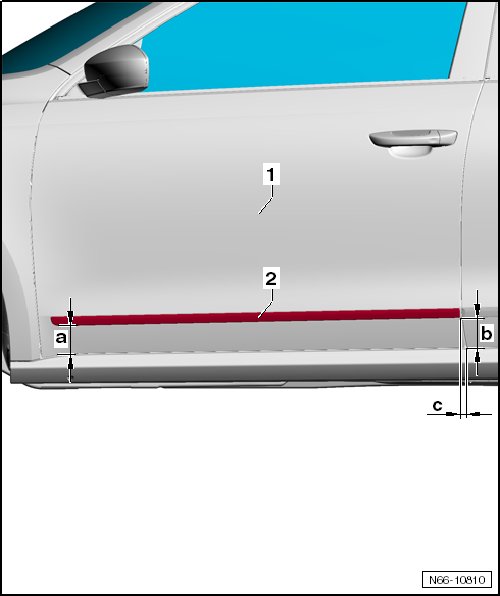

1 Front door

2 Body side molding

Dimension a = 74.5 +/- 0.2 mm.

Dimension b = 79.9 +/- 0.2 mm.

Dimension c = 25 + / - 0.2 mm
