Rear Lid Brand Emblem

Rear Lid Brand Emblem

Special tools, testers and auxiliary items required

• Hot air gun (V.A.G 1416)

• Adhesive strip remover (VAS 6349)

Assembly Information

• Heat the name plates or emblem before removing using hot air blower (V.A.G 1416).

• Use only adhesive remover (D 002 000 10) to remove any remaining adhesive when removing a name badge or emblem.

• Remove any adhesive residue left by the tape using adhesive remover (VAS 6349).

• Make sure the adhesive surfaces are free of dust and grease.

• Install the name badges or brand emblem immediately after cleaning.

• Only remove the protective film right before assembly.

• The temperature must be approximately 70°F (21 °C).

• It is not possible to remove the name plates or emblem without damaging them.

• Due to equipment variations, small deviations must be considered during removal and installation.






Removing

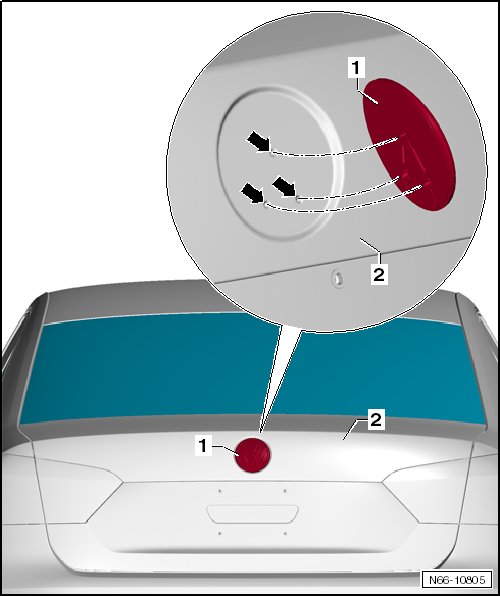

- Warm the brand emblem - 1 - before removing using hot air blower (V.A.G 1416).

- Remove the brand emblem from the rear lid - 2 -.

Installation

- Follow the installation instructions.

- Peel off the backing - 3 -.

- Place the brand emblem - 1 - with the assembly pins into the stamping - arrows - on the rear lid - 2 -.

- Push the brand emblem - 1 - on using force.

• The assembly pins will be forced into the base plate of the brand emblem - 1 -. The foam tape will seal it.
