Gear Shift Noise Insulation







Gear Shift Noise Insulation

- Remove the carpet.

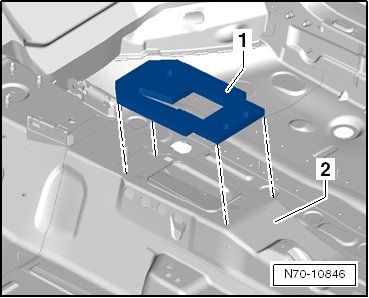

- Place the gearshift noise insulation - 1 - on the body center tunnel - 2 -.

- Install the carpet.
