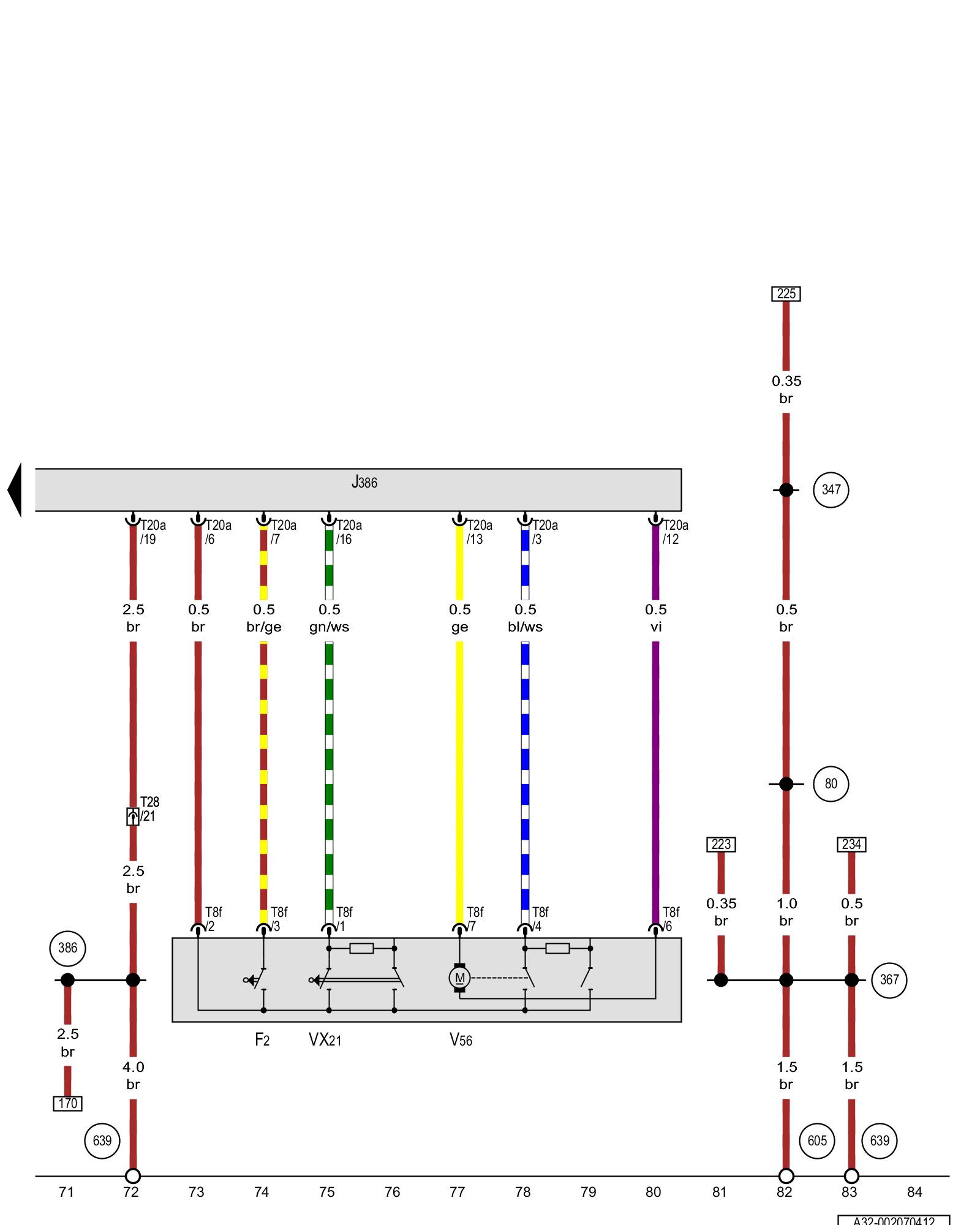

Diagram 2/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver door contact switch, Driver door control module, Driver door lock unit, Driver door central locking system motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F2 - Driver door contact switch Driver Door Lock Unit -F2- / -F220- / -V56-

J386 - Driver door control module Locations Driver/Front Pass Door Control Module -J386- / -J387-

T8f - 8-pin connector

T20a - 20-pin connector Locations

T28 - 28-pin connector, Left A-pillar, bottom

VX21 - Driver door lock unit Locations

V56 - Driver door central locking system motor Driver Door Lock Unit -F2- / -F220- / -V56-

(80) - Ground connection 1 (in instrument cluster wiring harness)

(347) - Ground connection (in roof wiring harness)

(367) - Ground connection 2 (in main wiring harness)

(386) - Ground connection 21 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(639) - Ground connection on left A-pillar Locations
