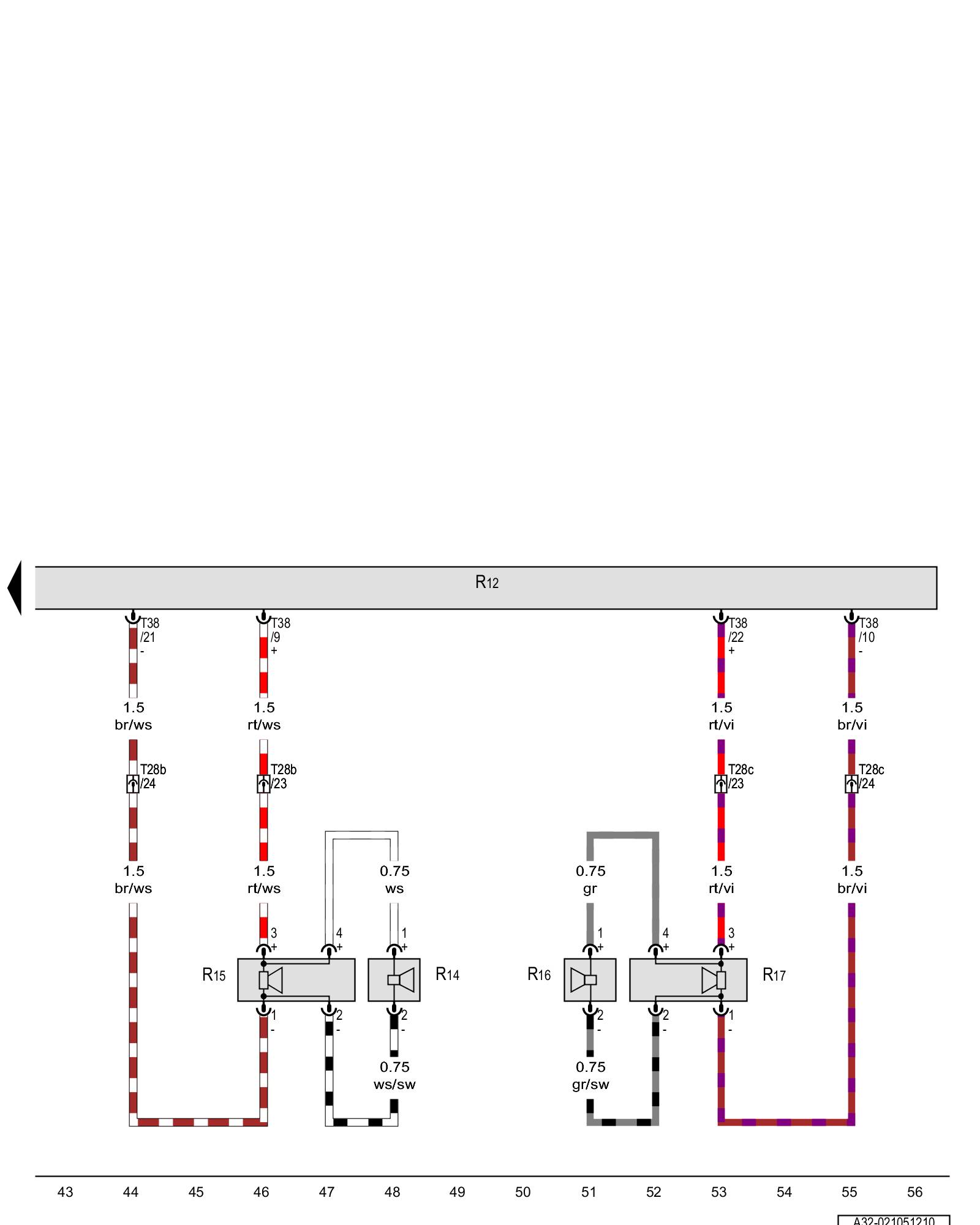

Diagram 21/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Amplifier, Left rear treble speaker, Left rear bass speaker, Right rear treble speaker, Right rear bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R12 - Amplifier Locations

R14 - Left rear treble speaker

R15 - Left rear bass speaker

R16 - Right rear treble speaker

R17 - Right rear bass speaker

T28b - 28-pin connector, on the left B-pillar

T28c - 28-pin connector, on the right B-pillar

T38 - 38-pin connector Locations
