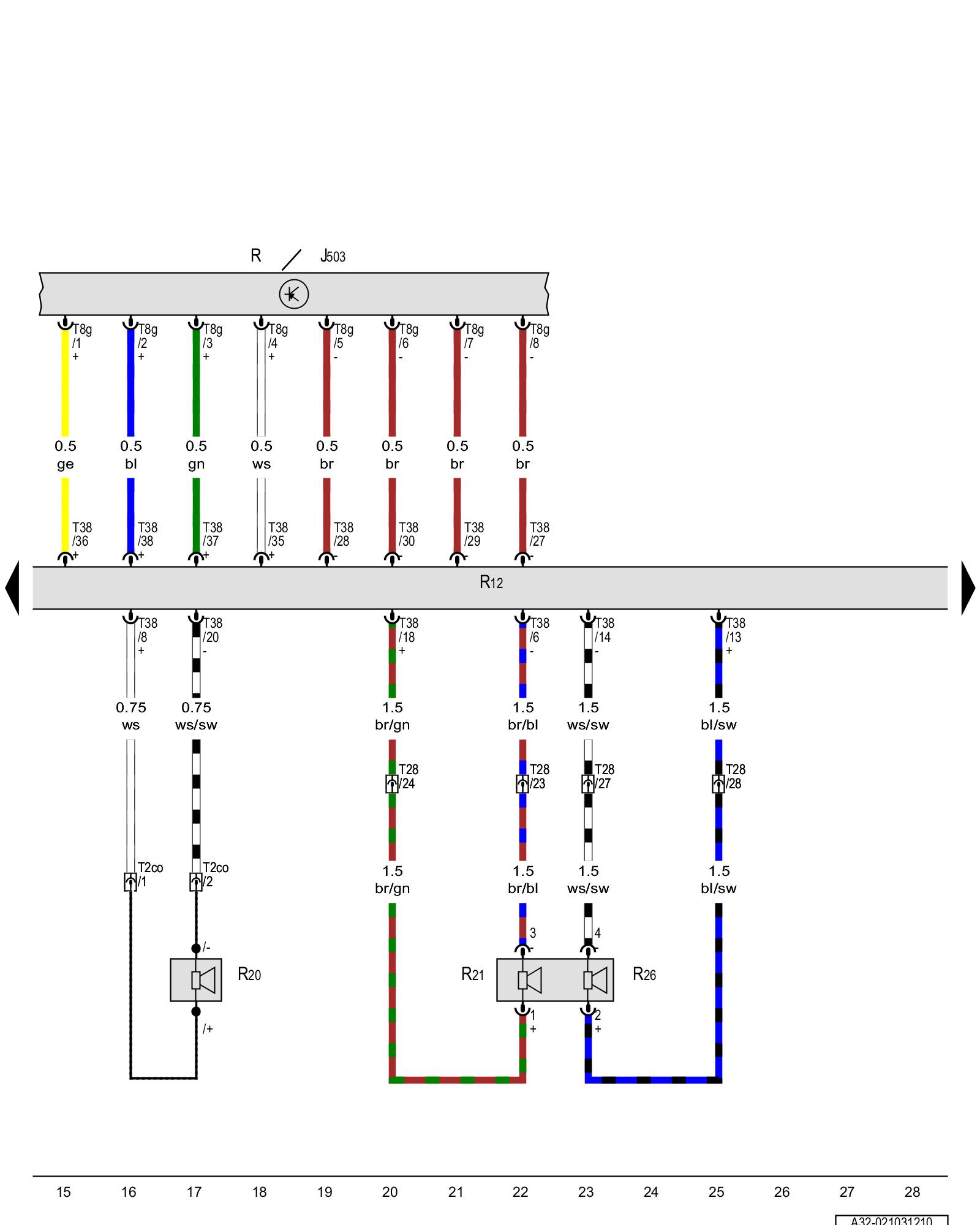

Diagram 21/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Radio, Amplifier, Left front treble speaker, Left front bass speaker, Left front mid-treble speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Locations

R - Radio Locations

R12 - Amplifier Locations

R20 - Left front treble speaker

R21 - Left front bass speaker

R26 - Left front mid-treble speaker

T2co - Double connector, Interface for front speaker, in the instrument panel, left

T8g - 8-pin connector

T28 - 28-pin connector, on the left A-pillar

T38 - 38-pin connector Locations

Previous Diagram 21/2 (Tracks 1-14)

Next Diagram 21/4 (Tracks 29-42)
