External Audio Source Connection (R199)

External Audio Source Connection (R199)

Special tools, testers and auxiliary items required

• Removal Wedge (VAS 3409)

• Familiarity with the functions and operation is essential in the event of customer concerns. Refer to Owner's Manual.

• Additional information, refer to the Owner's Manual,.

• Use the Vehicle Diagnostic Tester for Servicing or Troubleshooting.

• Check all vehicle equipment (clock, Convenience System, etc.) after connecting the battery.

• Connector assignment, refer to => [ External Audio Source Connector (R199) Connection ] External Audio Source Connector (R199) Connection

The external audio source connection works with the radio/RNS (RX1) that has an "AUX".

Audio signals (generally the headphone output signals) from MP3 players and CD and cassette players can be played in the radio/RNS at the external audio source connection with the appropriate wiring connection. They can then be played through the vehicle speakers.

The external audio source connection has a 3.5 mm stereo jack.

External audio source connection, installed position overview





The external audio source connection - 1 - is located inside the storage compartment under the front center armrest.

• The external audio source connection may be installed on vehicles without an external multimedia device interface (R215) next to the 12 V socket (UX3).

Installed location overview for the external audio source connection on the RNS 315

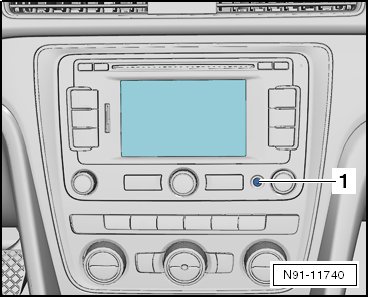

The external audio source connection - 1 - is integrated inside the RNS 315. It is located in the right side of the front trim at the bottom.

Removing

- Remove the rear trim from the center console.

• The 12 V socket (UX3) is not shown in the following illustrations.

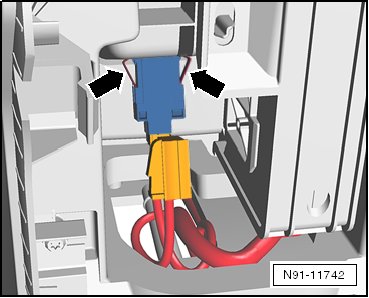

- Squeeze the clips - arrows - on the external audio source connection using (3409) and remove the external audio source connection.

- Disconnect the connector - arrow -.






Installing

Install in reverse order of removal.
