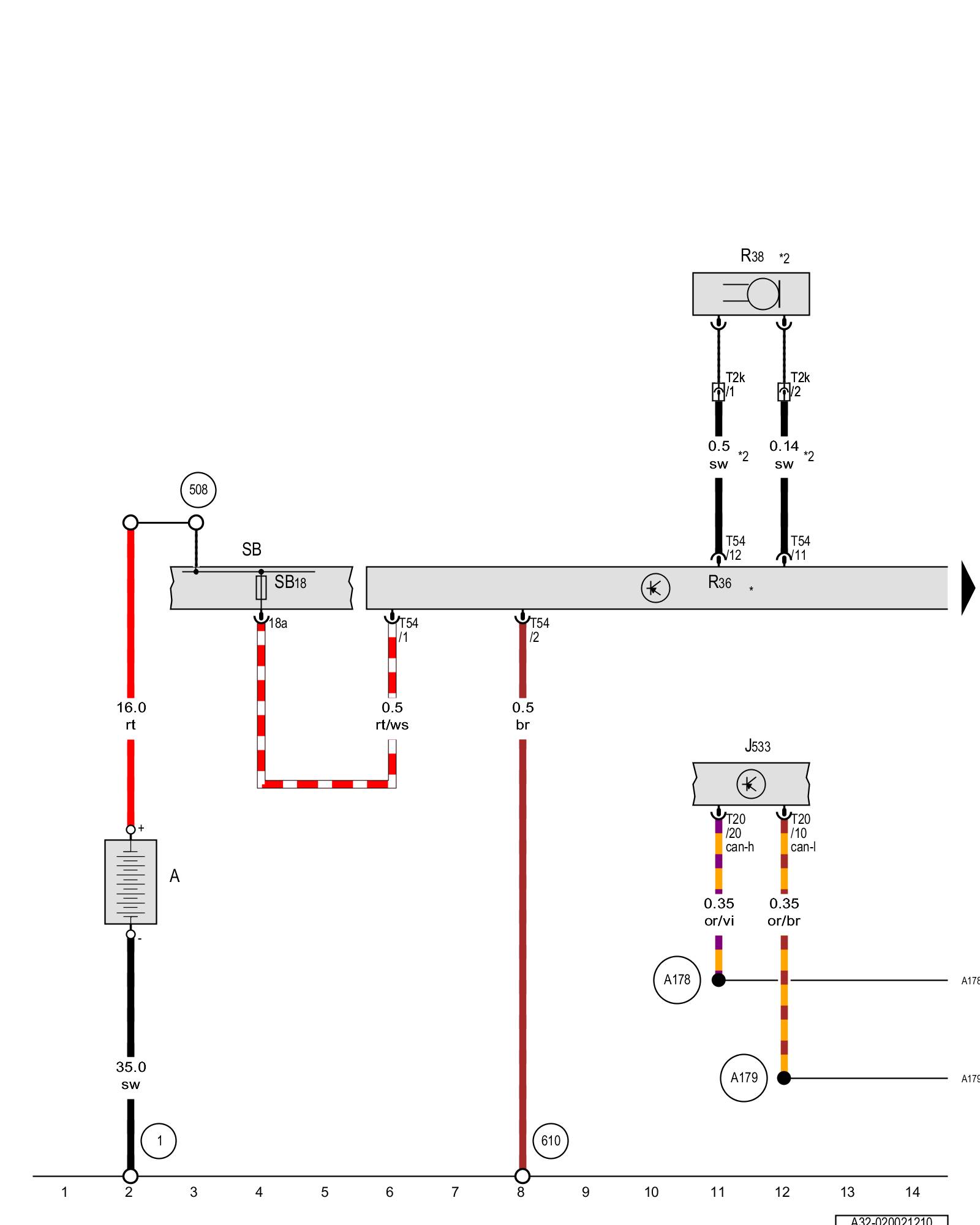

Diagram 20/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone transceiver, Telephone microphone, Fuse 18 (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J533 - Data bus on board diagnostic interface Locations

R36 - Telephone transceiver Locations

R38 - Telephone microphone

SB - Fuse panel B Overview of fuse holder

SB18 - Fuse 18 (on fuse panel B) Overview of fuse holder

T2k - Double connector

T20 - 20-pin connector Locations

T54 - 54-pin connector Locations

(1) - Ground strap, battery to body Locations

(508) - Terminal 30 threaded connection (on E-box)

(610) - Audio ground connection under front center console Locations

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

* - Component not contained in cell phone prep

*2 - Only for vehicles without speech recognition system

Next Diagram 20/3 (Tracks 15-28)
