Diagram 9/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

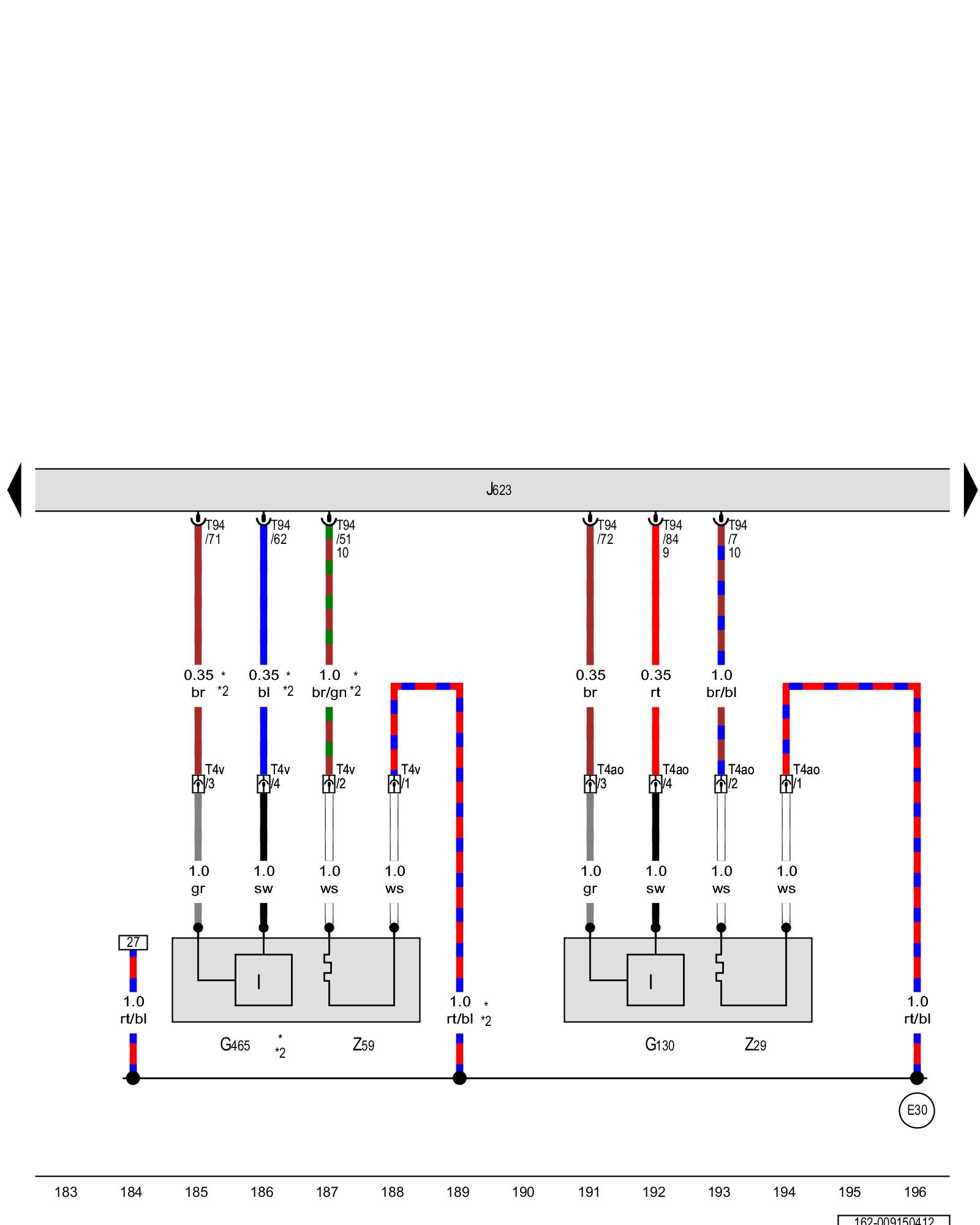

Oxygen sensor after three way catalytic converter, Oxygen sensor in bank 1 center three way catalytic converter, Engine control module, Heater for oxygen sensor 1 after catalytic converter, Heater for oxygen sensor center catalytic converter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G130 - Oxygen sensor after three way catalytic converter Locations Oxygen Sensor After Three way Catalytic Converter -G130-

G465 - Oxygen sensor in bank 1 center three way catalytic converter Locations Oxygen Sensor in Bank 1 Center Three way Catalytic Converter -G465-

J623 - Engine control module Overview Of Control Modules

T4ao - 4-pin connector

T4v - 4-pin connector

T94 - 94-pin connector

Z29 - Heater for oxygen sensor 1 after catalytic converter Oxygen Sensor After Three way Catalytic Converter -G130-

Z59 - Heater for oxygen sensor center catalytic converter

(E30) - Connection 87a (in engine wiring harness)

* - Depending on equipment

*2 - USA only

Previous Diagram 9/14 (Tracks 169-182)

Next Diagram 9/16 (Tracks 197-210)
