Fixed Door Window

Fixed Door Window

• The following describes removing and installing the right door window when it is fixed. Removing and installing the left fixed door window is identical.

Removing






Perform the following:

- Remove the window guide. Refer to => [ Window Guide ] Window Guide.

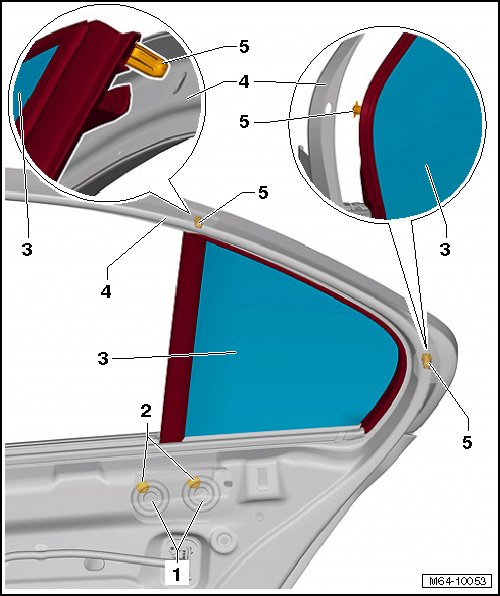

- Pry the caps - 1 - out.

- Remove the bolts - 2 -.

- Pull the fixed door window - 3 - just far enough from the off the door - 4 - until the clips - 5 - are released.

- Remove the fixed door window - 3 - from the door - 4 -.

Installation






Perform the following:

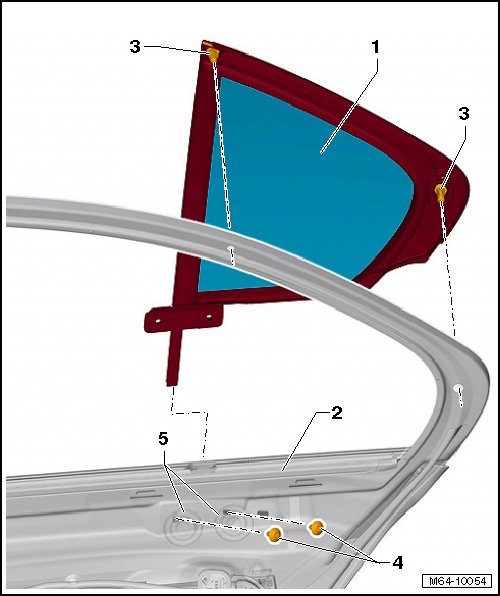

- Install the fixed door window - 1 - into the door - 2 -.

- Press the fixed door window - 1 - evenly onto the door - 2 - until the clips engage - 3 -.

- Tighten the bolts - 4 -.

Tightening specification - 4 -: 5.5 Nm

- Install the caps - 5 -.

- Install the window guide. Refer to => [ Window Guide ] Window Guide.
