Window Regulator Switch Module, Driver Side

Window Regulator Switch Module, Driver Side

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)


• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( Trim Removal Wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Components, Switch Module, Window Regulator - Driver Side

• Left Front Window Regulator Switch (E40)

• Driver Left Rear Window Regulator Switch (E53)

• Driver Right Rear Window Regulator Switch (E55)

• Driver Right Front Window Regulator Switch (E81)

• Child Safety Button (E318)

• Push Button Illumination (L76)

The components listed above cannot be replaced separately. If faulty, the switch module must be replaced.

Removing

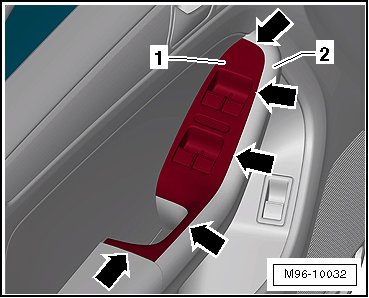

- Remove the handle trim at the tabs - arrows - - 1 -, using (VAS 3409) , from the pull handle - 2 -.






- Disconnect the connector - 3 -.

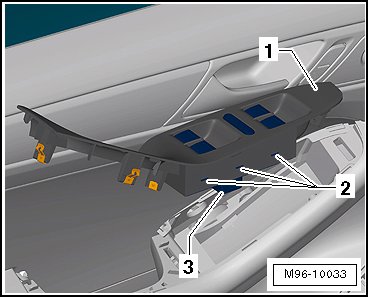

- Open the six tabs - 2 - and remove the front passenger door window regulator switch (E107) - 3 - from the handle trim - 1 -.






Installing

Install in reverse order of removal. Note the following:

- Make sure the tabs click into place when installing.
