Drive Axle with Triple Roller Joint AAR3300i

Drive Axle with Triple Roller Joint AAR3300i

Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 408 A)

• Punch (VW 411)

• Sleeve (VW 416 B)

• Thrust Pad (VW 447 H)

• Hose Clamp Pliers (V.A.G 1275)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Torque Wrench 40-200 Nm (V.A.G 1332)

• CV Joint Boot Clamp Tool (V.A.G 1682)

• Assembly Tool (T10065)

• Slide Hammer - Complete Set (VW 771)

• Puller (T10382)

Removing the Outer CV Joint

- Secure the drive axle with protective covers in a vise clamp.

- Fold back boot.

- Align the (T10382) so that the flat side of the plate (T10382/1) faces the spindles (T10382/2).

- Attach the (T10382) to the (VW 771).

- Remove the CV joint from the drive axle using the (T10382) and (VW 771).

1. (T10382/1)

2. (T10382/2)

Driving On Outer CV Joint

Installed Location of Spring Washer and Thrust Washer on Outer Joint

1 - Dished washer

2 - Thrust washer

- Install the new circlips.

- Slide new CV boot onto drive axle if necessary.

- Drive it onto shaft with plastic hammer until securing ring engages.

Disassembling

- Open both clamps at inner joint and slide back CV boot.

- Remove joint from drive axle.

- Remove securing ring.

1 Pliers (commercially available)
or (VW 161 A)

- Insert drive axle in vise.

- Press the triple roller star off the drive axle.

- Pull off CV boot from shaft.

- Clean shaft, joint and groove for oil seal.

Assembling

- Slide small clamp for joint protective boot onto shaft.

- Slide CV boot onto shaft.

- Slide joint piece onto shaft.

Mount Triple Roller Star

Conical-Type Drive Axle

The chamfer on triple roller star faces toward shaft, this is used as an assembly aid.

- Connect triple roller star on shaft and press on up to stop.

- Make sure the pressure does not increase above 3.0 t.

- If necessary, coat the drive shaft splines and triple roller star with lubricating paste (G 052 142 A2).

- Insert securing ring, be sure to fit properly.

- Press half of the joint grease from the repair set into the triple roller joint.

- Slide joint piece over rollers and secure.

- Press the remaining half of the drive axle grease from the repair kit into the rear side of the triple roller joint.

- Install CV boot.

Mount Triple Roller Star

Cylindrical-Type Drive Axle

- Connect triple roller star on shaft and press on up to stop.

- Make sure the pressure does not increase above 3.0 t.

- If necessary, coat the drive shaft splines and triple roller star with lubricating paste (G 052 142 A2).

- Insert securing ring, be sure to fit properly.

- Press half of the joint grease from the repair set into the triple roller joint.

- Slide joint piece over rollers and secure.

- Press the remaining half of the drive axle grease from the repair kit into the rear side of the triple roller joint.

- Install CV boot.

- Push the protective boot onto the joint and mount the clamp. Refer to => [ Tightening Hose Clamp on Outer Joint ] Drive Axle with CV Joint VL107.

- Install clamp.

• For a better alignment of the multipoint socket head bolts when mounting the axle shaft, it is necessary that the clamping ear of the clamp - arrow A - is placed between the fixing flanges from the joint - arrows B -.

Tightening the Tensioning Clamps on the Larger Diameter on the Inner Joint

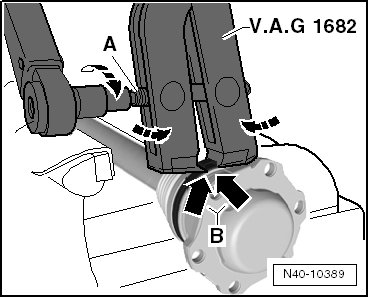

- Attach (V.A.G 1682) as shown in illustration. When doing this, make sure that edges of clamping pliers are seated in corners - arrows B - of clamp.

- Tension clamp by turning spindle with a torque wrench (do not tilt clamp tool).

• The hard material of the joint boot (compared to rubber) makes it necessary to use a stainless steel hose clamp. It is only possible to tighten the hose clamp with (V.A.G 1682).

• Tightening specification: 25 Nm.

• Use torque wrench - C - with adjustment range 5..50 Nm, for example (V.A.G 1331).

• Be sure thread of spindle - A - of clamp tool moves freely. Grease with MOS 2 grease if necessary.

• If the thread is tight for example dirty, the required tensioning force for the hose clamp will not be achieved in spite of correct torque specification settings.

Tightening Hose Clamp on Outer Joint
