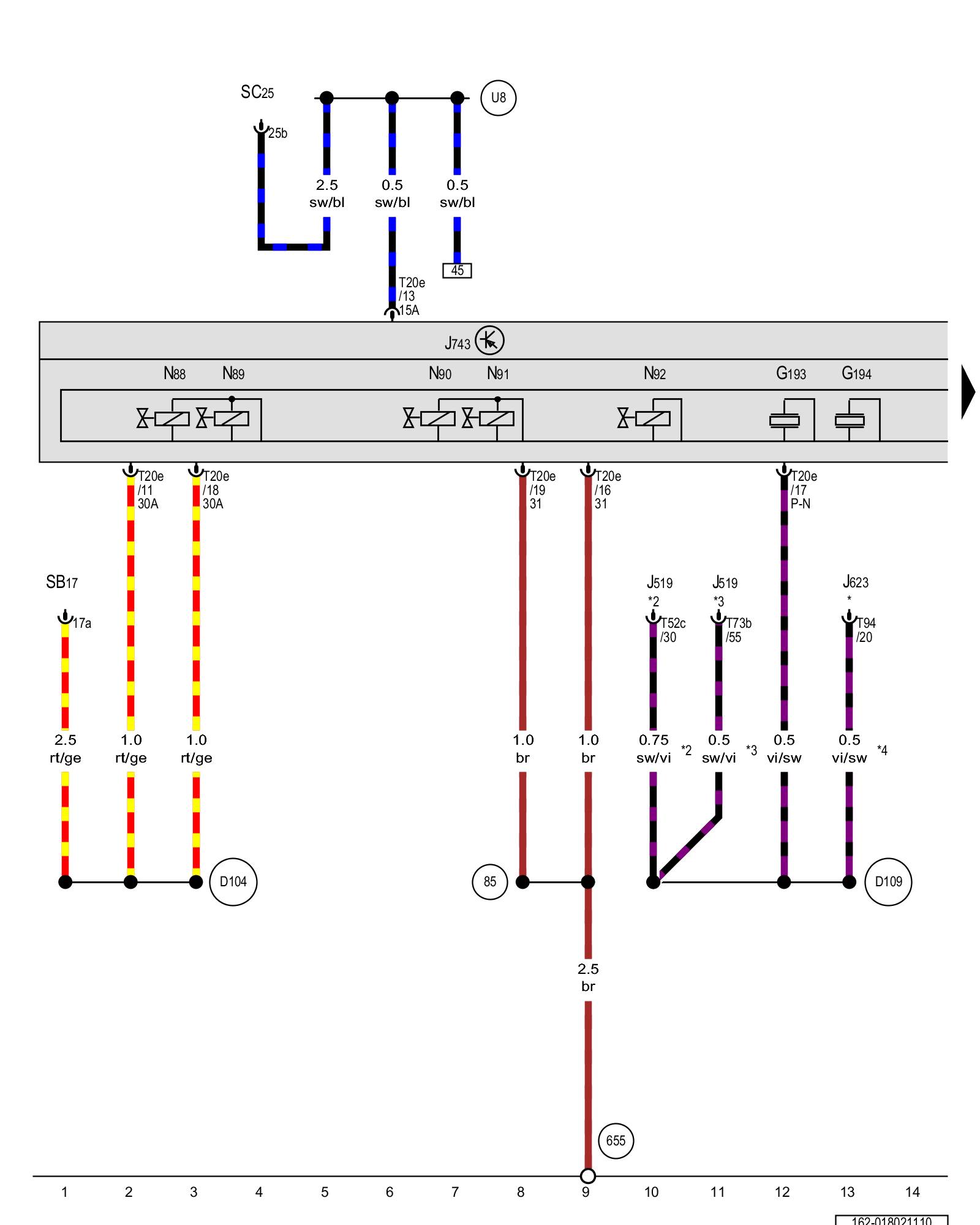

Diagram 18/2 (Tracks 1-14)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
DSG transmission Mechatronic
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
G193 - Automatic transmission hydraulic pressure sensor 1 Locations
G194 - Automatic transmission hydraulic pressure sensor 2 Locations
J519 - Vehicle electrical system control module Overview Of Control Modules
J623 - Engine control module Overview Of Control Modules
J743 - DSG transmission Mechatronic Overview Of Control Modules Connector Views
N88 - Solenoid valve 1 Locations
N89 - Solenoid valve 2 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283
N90 - Solenoid valve 3 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283
N91 - Solenoid valve 4 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283
N92 - Solenoid valve 5 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283
SB17 - Fuse 17 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)
SC25 - Fuse 25 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)
T20e - 20-pin connector
T52c - 52-pin connector Overview Of Control Modules
T73b - 73-pin connector Overview Of Control Modules
T94 - 94-pin connector
(85) - Ground connection 1 (in engine compartment wiring harness)
(655) - Ground connection on left headlamp Locations
(D104) - Positive connection 2 (30a) (in engine compartment wiring harness)
(D109) - Connection (7) (in engine compartment wiring harness)
(U8) - Positive connection (15a) (in automatic transmission wiring harness)
* - Refer to applicable engine wiring diagram
*2 - only for vehicles with High equipment (AW1)
*3 - only for vehicles with Low equipment (AW0)
*4 - Depending on equipment
Next Diagram 18/3 (Tracks 15-28)
