Suspension Control ( Automatic - Electronic ): Service and Repair

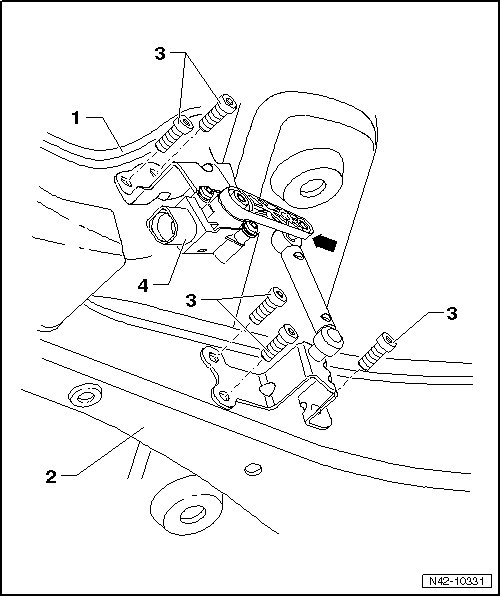

Left Rear Level Control System Sensor Overview

• Vehicle level sensor is available as replacement part only complete with coupling rod and upper and lower retaining plates.






1 Subframe

2 Lower Transverse Link

3 Bolt

• M5 x 20

• 5 Nm

4 Left Rear Level Control System Sensor (G76)

• Complete with components.

• Lever - arrow - must point toward vehicle exterior.

• Removing and installing, refer to => [ Left Rear Level Control System Sensor ] Service and Repair.

• After replacing, perform basic setting of the headlamps using the Vehicle Diagnostic Tester.
