Thread, Servicing

Thread, Servicing

Drilling

Wear protective eyewear when drilling out the threads.

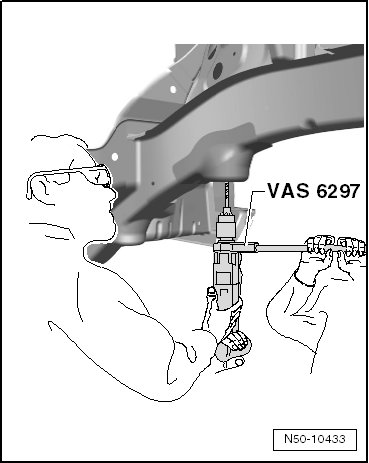

- Drill out the threads with the spiral drill.






• Use drill (VAS 6267) for drilling and grinding.

• While drilling, drill must be held by a second person using an additional handle.

• Do not angle the drill.






Cutting

Wear protective eyewear when cutting the thread and when cleaning the threaded bushing with compressed air.

- Cut the threads with the thread tap.






- Clean threaded bushing (blow with pressurized air).

Inserting

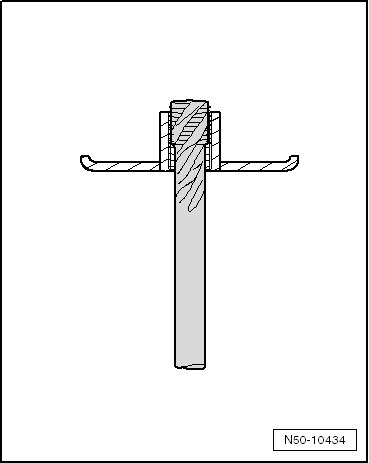

- Turn the threaded insert - 3 - onto the spindle until the drive peg - 2 - makes contact on drive tab - 1 - of installing spindle.






• Thread insert must be able to be turned easily.

- Screw the threaded insert into the threaded plate until the threaded insert is seated flush with the outer edge of the threaded plate (check visually).






- Then tighten the threaded insert by a 1/4 turn further.

- Remove the spindle.

- Break off thread insert driver tang using tang breaker.






- Install the subframe (suspension subframe). Tighten to specifications.
