Stabilizer Bar Overview

Stabilizer Bar Overview

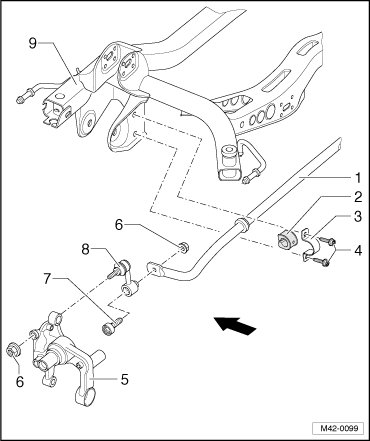

1 Stabilizer Bar

• There are different versions of the suspension. Refer to => [ Explanation on the Vehicle Data Label ] Application and ID.

• Removing and installing, refer to => [ Stabilizer Bar ] Stabilizer Bar.

2 Rubber Mount

• Replace mounts always on both sides of vehicle.

3 Clamp

4 Bolt

• 25 Nm + 90° turn

• Tighten uniformly.

• Always replace if removed.

• Always tighten threaded connections in curb weight position. Refer to => [ Rear Axle, Lifting to Curb Weight Position ] Rear Suspension.

5 Wheel Bearing Housing

6 Nut

• 45 Nm

• Self-locking

• Always replace if removed.

7 Bolt

• Self-locking

• Always replace if removed.

8 Coupling Rod

• Connects stabilizer to trailing link/wheel bearing housing.

9 Subframe
