Control Arm Front Bonded Rubber Bushing

Control Arm Front Bonded Rubber Bushing

Special tools, testers and auxiliary items required

• Assembly Tool (T10219)

• Thrust Plate (VW 402)

• Punch (VW 411)

• Punch (VW 412)

Perform the Following Work:

- Remove the control arm. Refer to => [ Control Arm ] Control Arm.

- Remove the control arm (left side of the vehicle with DSG or automatic transmission). Refer to => [ Control Arm, Left Side of Vehicle with DSG or Automatic Transmission ] Control Arm, Left Side of Vehicle with DSG or Automatic Transmission.

Pressing Out the Bonded Rubber Bushing

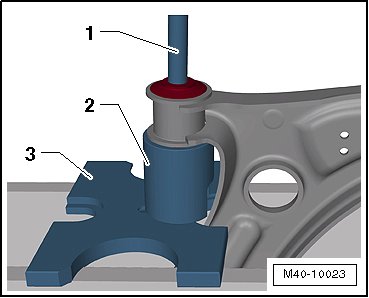

- Press out bonded rubber bushings as depicted in the illustration.






1. (VW 411)

2. Tube (T10219/1) (the hole must face the control arm)

3. (VW 402)


Pressing In the Bonded Rubber Bushing

- Apply installation lubricant (G 294 421 A1) onto outside of bonded rubber bushing.

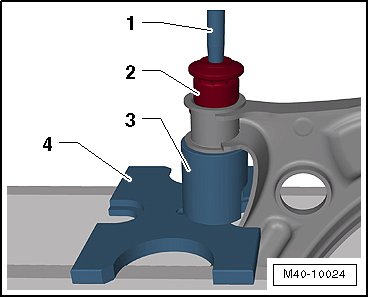

- Install the bonded rubber bushing as illustrated.






1. Drift (T10219/2)

2. Bonded rubber mount

3. (T10219/1) (the hole must face the control arm)

4. (VW 402)


• The bonded rubber bushing will be crooked for a short time at the beginning of the installation. Later it will straighten out. It will not be necessary to guide it.

- Install the bonded rubber bushing until the core - 1 - and the transverse link hole - 2 - are at the same height.






- Press back bearing slightly in control arm.






1. (VW 412)

2. (T10219/1)

3. (VW 402)


Dimensions - a - and - b - must be identical.






- Install the control arm => [ Installing ] Control Arm.

- Install the control arm (left side of the vehicle with DSG or automatic transmission). Refer to => [ Installing ] Control Arm, Left Side of Vehicle with DSG or Automatic Transmission.
