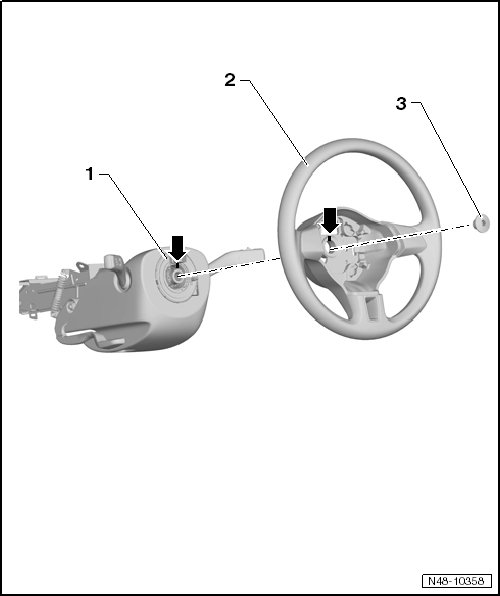

Steering Wheel with Airbag Overview

Steering Wheel with Airbag Overview






1 Steering Column

• Removing and installing, refer to => [ Steering Column ] Steering Column.

2 Steering Wheel

• Removing and installing, refer to => [ Steering Wheel with Airbag ] Steering Wheel with Airbag.

• There are different versions. Allocation, refer to the Electronic Parts Catalog (ETKA).

3 Bolt

• 30 Nm + 90° turn

• Always replace if removed.
