Hydraulic Power Steering System Overview

Hydraulic Power Steering System Overview

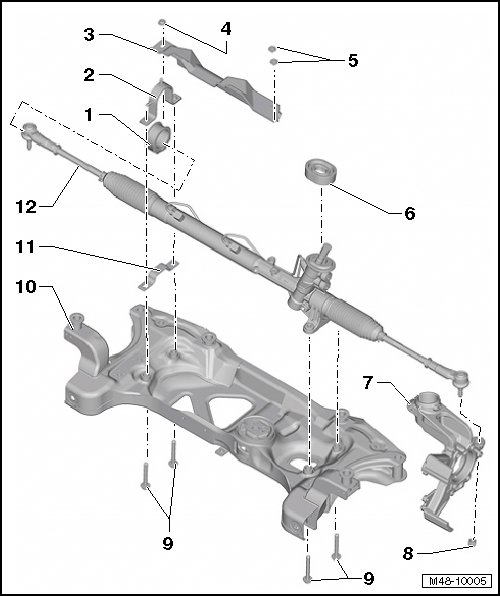

• The steering gear is not serviceable. Replace the steering gear if there are complaints.






1 Rubber Bushing

2 Clamp

• Always replace if removed.

3 Heat Shield

4 Nut

• 6 Nm

5 Bolt

• 23 Nm

6 Gasket

7 Wheel Bearing Housing

8 Nut

• 20 Nm + 90° turn

9 Bolt

• 50 Nm + 90° turn

• Always replace if removed.

10 Subframe

11 Washer

12 Steering Gear

• Removing and installing, refer to => [ Steering Gear ] Steering Gear.
