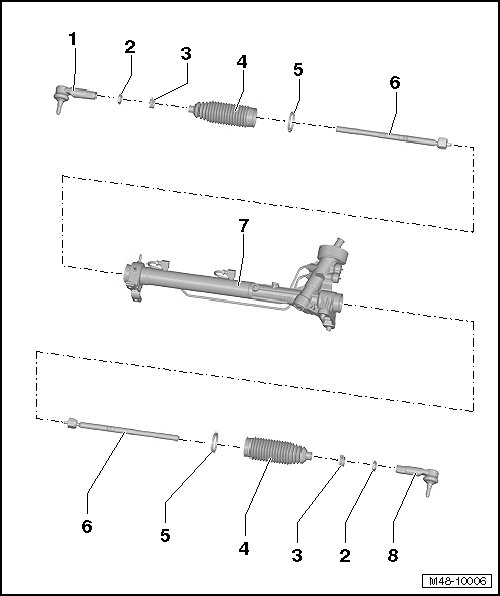

Hydraulic Power Steering Gear Overview

Hydraulic Power Steering Gear Overview






1 Right Tie Rod End

• Identified with "A". Refer to => [ Make sure the correct tie rod end is installed on each side. ] Tie Rod.

• Removing and installing, refer to => [ Tie Rod Ball Joint ] Tie Rod Ball Joint.

• Checking, refer to => [ Checking Play, Security and Joint Boots of Tie Rod Ends ] Checking Play, Security and Joint Boots of Tie Rod Ends.

• Installed position, refer to => [ Tie Rod End Allocation ] Application and ID.

2 Nut

• 70 Nm

3 Clamp

4 Boot

• Must not be twisted after toe is adjusted.

• To replace, remove steering gear.

5 Clamp

• Replace.

• Tensioning, refer to => [ Tie Rod Length, Checking and Adjusting ] Procedures.

6 Right Tie Rod

• 100 Nm

• Removing and installing, refer to => [ Tie Rod ] Tie Rod.

• Is preset when supplied as replacement part.

7 Steering Gear

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ Steering Gear ] Steering Gear.

8 Left Tie Rod End

• Identified with "B". Refer to => [ Make sure the correct tie rod end is installed on each side. ] Tie Rod.

• Removing and installing, refer to => [ Tie Rod Ball Joint ] Tie Rod Ball Joint.

• Checking, refer to => [ Checking Play, Security and Joint Boots of Tie Rod Ends ] Checking Play, Security and Joint Boots of Tie Rod Ends.

• Installed position, refer to => [ Tie Rod End Allocation ] Application and ID.
