Electromechanical Steering System Overview

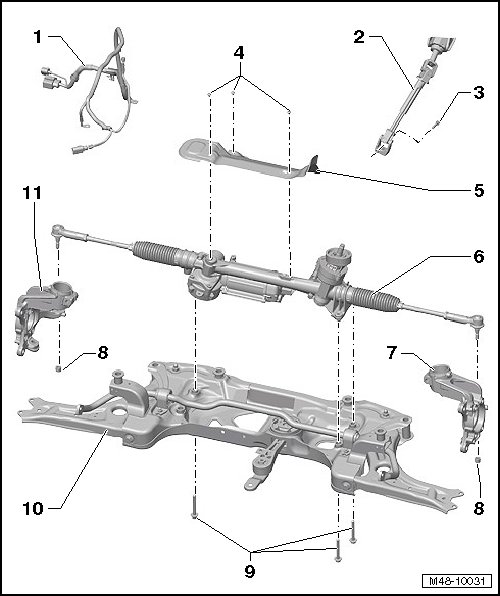

Electromechanical Steering System Overview






1 Electrical Wiring

2 Universal Joint

3 Bolt

• M8 x 35

• 30 Nm

• Always replace if removed.

4 Bolt

• 6 Nm

• Self-tapping

5 Shield

6 Steering Gear

• With Power Steering Control Module (J500).

• With Electromechanical Power Steering Motor (V187).

• With Steering Angle Sensor (G85).

• With Steering Torque Sensor (G269).

• Can be checked in Guided Fault Finding using the Vehicle Diagnostic Tester.

• Removing and installing, refer to => [ Steering Gear ] Steering Gear.

• Correct any faults stored in the DTC memory before replacing the steering gear using Vehicle Diagnostic Tester.

7 Left Wheel Bearing Housing

8 Nut

• M12 x 1.5

• 20 Nm + 90° turn

• Self-locking

• Always replace if removed.

9 Bolt

• 50 Nm + 90° turn

• Always replace if removed.

10 Subframe

11 Right Wheel Bearing Housing
