Electromechanical Steering Gear Overview

Electromechanical Steering Gear Overview

• Currently, there is no service work to be performed on steering gear.

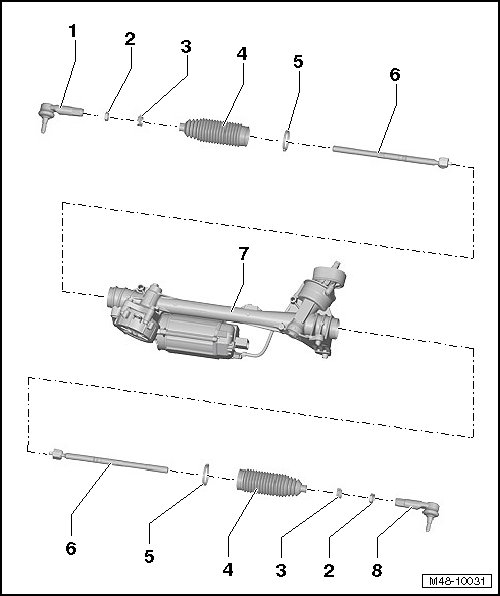

1 Right Tie Rod End

• Identified with "A". Refer to => [ Make sure the correct tie rod end is installed on each side. ] Tie Rod.

• Removing and installing, refer to => [ Tie Rod Ball Joint ] Tie Rod Ball Joint.

• Checking, refer to => [ Checking Play, Security and Joint Boots of Tie Rod Ends ] Checking Play, Security and Joint Boots of Tie Rod Ends.

• Installed position, refer to => [ Tie Rod End Allocation ] Application and ID.

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

2 Nut

• 70 Nm

3 Clamp

4 Boot

• Must not be twisted after toe is adjusted.

• Removing and installing, refer to => [ Boot ] Boot.

5 Clamp

• Replacing.

• Tensioning, refer to => [ Boot, Installing ] Procedures.

6 Tie Rod

• 100 Nm

• Removing and installing, refer to => [ Tie Rod ] Tie Rod.

7 Steering Gear

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ Steering Gear ] Steering Gear.

8 Left Tie Rod End

• Identified with "B". Refer to => [ Make sure the correct tie rod end is installed on each side. ] Tie Rod.

• Removing and installing, refer to => [ Tie Rod Ball Joint ] Tie Rod Ball Joint.

• Checking, refer to => [ Checking Play, Security and Joint Boots of Tie Rod Ends ] Checking Play, Security and Joint Boots of Tie Rod Ends.

• Installed position, refer to => [ Tie Rod End Allocation ] Application and ID.

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).
