Steering Column Cover: Service and Repair

Steering Column Trim

Removing

• For reasons of clarity, the steering wheel is not depicted in the illustration, it is not necessary to remove it.

- Release the steering column adjustment lever.

- Pull the steering out and push is down.

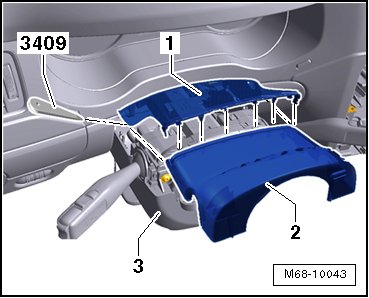

- Loosen the gap cover - 1 - from the upper steering column trim - 2 - using (3409).

- Remove the upper steering column trim - 2 - from the lower steering column trim - 3 - using (3409).

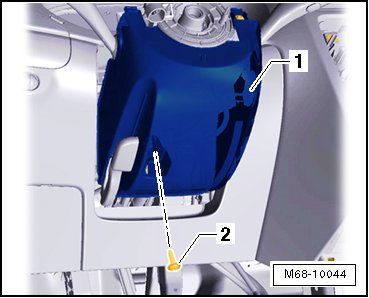

- Remove the bolt - 2 - from the lower steering column trim - 1 - (1.5 Nm).






- Remove the 2 screws - 2 - (1.5 Nm). Turn the steering wheel so that the bolts are accessible.






- Release the steering column adjustment lever.

- Remove the lower steering column trim - 1 - from the steering column.

Installation

- Install in reverse order of removal.
