2.5L Engine

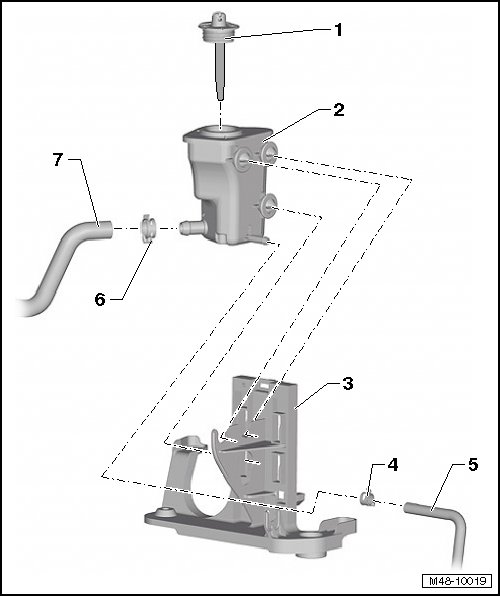

Power Steering Fluid Reservoir Overview






1 Cap with Dipstick

• Power steering, checking fluid level, refer to => [ Hydraulic Power Steering, Checking Hydraulic Oil Level ] Hydraulic Power Steering, Checking Hydraulic Oil Level.

2 Reservoir

3 Bracket

• For reservoir.

4 Clamp

5 Return Hose

6 Intake Hose

7 Clamp
