Home >> Volkswagen >> 2012 >> Jetta GLI (162) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Connector Locations >> Connector Station Engine

Connector Station Engine

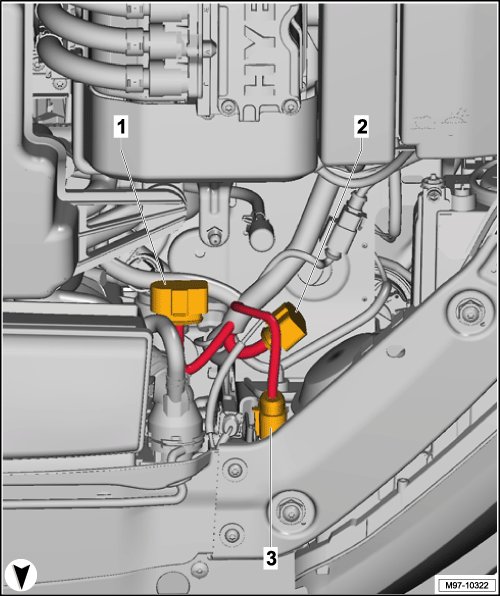

Wiring harness connector stations and connectors

Connector station engine







1 14-pin connector -T14-
2 14-pin connector -T14hy-
• Only for models with high-voltage system (hybrid)
3 14-Pin Connector -T14l- , T14r
• Only for models with gas discharge headlamp
• 10-pin connector -T10l- , T10r, only for models with halogen headlamps
