Overview Of Connector Stations and Connectors

Wiring harness connector stations and connectors

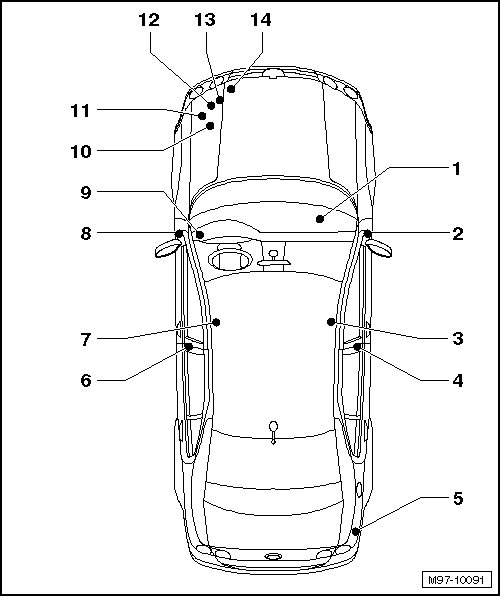

Overview of connector stations and connectors







1 Connector station under the instrument panel in the front passenger footwell, -T10a-
• Component location => [ Connector station under instrument panel in front passenger footwell ] Connector Station Under Instrument Panel in Front Pass Footwell
2 Connector station on A-pillar, front passenger side
• Component location => [ Connector station on A-pillar, front passenger side ] Connector Station On A-pillar, Front Pass Side
3 Front passenger seat connector station, -T10b- , -T10d- , -T3l- , -T2be- , -T2y-
• Component location => [ Seat connector station, front passenger side ] Component Locations
4 Connector station B-pillar, front passenger's side
• Component location => [ Connector station B-pillar, front passenger's side ] Connector Station B-pillar, Front Pass Side
5 Rear bumper connector station, -T6af-
• Component location => [ Connector station in rear bumper ] Connector Station in Rear Bumper
6 Connector station B-pillar, driver's side
• Component location => [ Connector station B-pillar, driver's side ] Connector Station B-pillar, Driver's Side
7 Driver seat connector station, -T10c- , -T3k- , -T3ar- , -T2q-
• Component location => [ Driver seat connector station ] Connector Locations
8 A-pillar connector station, driver side
• Component location => [ A-pillar connector station, driver side ] A-pillar Connector Station, Driver Side
9 Diagnostic connection -U31-
• Component location => [ ] Locations
10 Steering connector station, -T6z-
• Component location => [ Connector station steering ] Connector Station Steering
11 Diesel engine connector station, -T10g-
• Component location => [ Connector station, diesel engine, ] Connector Station, Diesel Engine,
12 Generator connector station, -T2i- , -T4t-
• Component location => [ Connector station generator ] Connector Station Generator
13 Engine connector station, -T14-
• Component Location T14 => [ Connector station engine ] Connector Station Engine
• Component location, T14y for vehicles with high-voltage system (hybrid) => [ Connector station engine ] Connector Station Engine
14 Front bumper connector station, -T8l-
• Component location => [ Connector station front bumper ] Connector Station Front Bumper
15 Connector station coolant Fan
• Component location => [ Connector station coolant Fan ] Connector Station Coolant Fan
