A-pillar Connector Station, Driver Side







Wiring harness connector stations and connectors

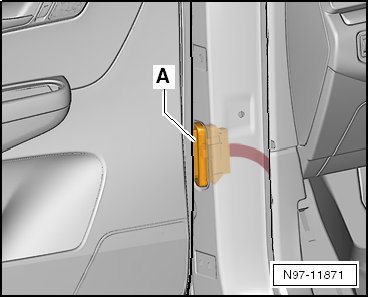

A-pillar connector station, driver side







A - 28-pin connector -T28- /32-pin connector2fach -T32f- (AW0)
