Home >> Volkswagen >> 2012 >> Jetta GLI (162) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Fuses for the battery in the luggage compartment

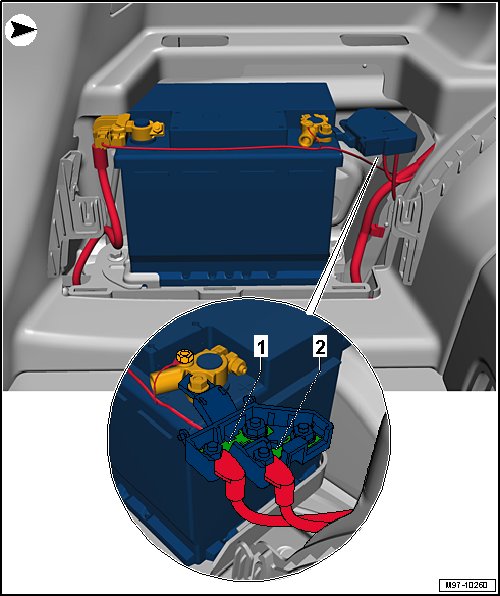

Fuses for the battery in the luggage compartment







Fuses

Fuses for the battery in the luggage compartment


Only for models with high-voltage system (hybrid).





- Fuse 1 (terminal 30) on battery fuse panel -S162- -1-, Nominal value 175 A
- Fuse 2 (terminal 30) on battery fuse panel -S163- -2-, Nominal value 80 A
