Home >> Volkswagen >> 2012 >> Jetta GLI (162) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Front Brakes, FN 3

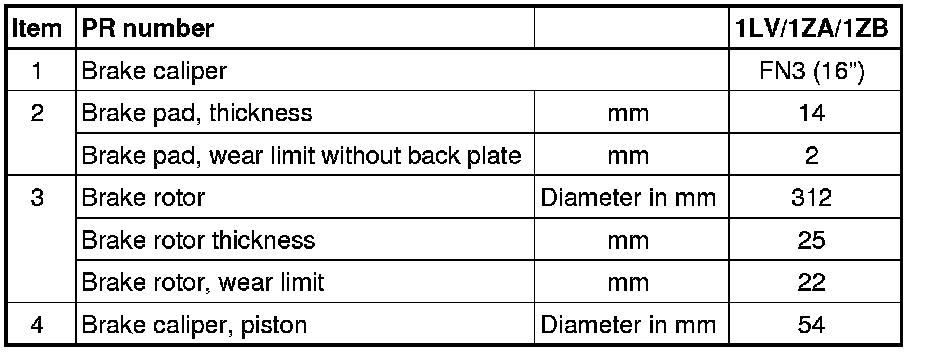

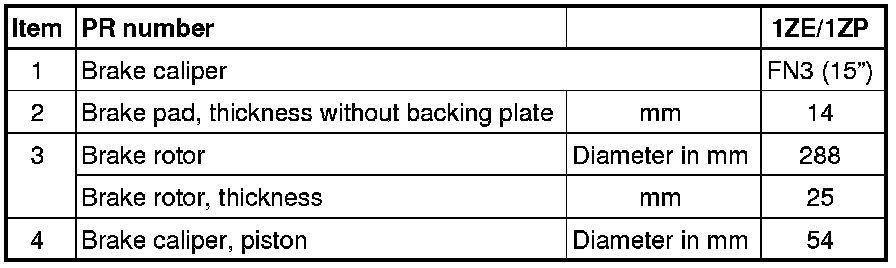

Front Brakes, FN 3






Front Brakes, FN 3
