Clutch Pedal Position Sensor / Switch: Service and Repair

Clutch Position Sensor G476

Special tools, testers and auxiliary items required

• Hose Clamps up to 25 mm Dia. (3094)

Removing

- First, check whether a coded radio is installed. If so, obtain the anti-theft code.

- Turn off the ignition and disconnect the battery ground cable.

- Remove the entire air filter housing, if it is located near the battery.

- Remove the battery and the battery tray.

If a hose/line assembly - 1 - with a round component is installed directly below the master cylinder, the hose/line assembly must be removed.

• While performing the following procedure, make sure no brake fluid comes into contact with the longitudinal member or the transmission. If it does, clean the area thoroughly.

- Place a lint free cloth under the master cylinder.

- Clamp off the supply hose to the master cylinder using a hose clamp up to 25 mm dia. (3094).

- Using a screwdriver or a pointed tool, pull out the clip - 2 - until it stops.

- Remove the hose/line assembly - 1 - or pipe from the clutch master cylinder and seal it off.

- Disconnect the connector - 4 -.

- Unclip the clutch position sensor from the master cylinder - arrow - and remove it.

• Ignore - item 3 -.

Installing

Install in the reverse order of removal. Note the following:

• Replace the hose clamps

• Refer to the Parts Catalog.

If the hose/line assembly was removed:

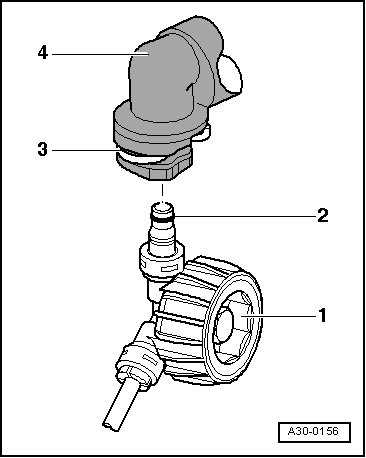

- Install the hose/line assembly - 1 - or pipe with a seal - 2 - into the clutch master cylinder connection - 4 - until the clip - 3 - audibly engages.

- Pull on the hose/line assembly or pipe to make sure it is secure.

- After removing the hose clamp up to 25 mm dia. (3094) , bring the supply hose back to its original shape.

- Bleed the clutch system. Refer to => [ Clutch System, Bleeding ] Procedures.

- Install the battery tray and the battery.

- Install the entire air filter housing, if it is located near the battery.

- Connect the battery and follow the steps for after connecting the battery.
