High Pressure Sensor / Switch: Service and Repair

High Pressure Sensor (G65)

- Remove the noise insulation from the engine.

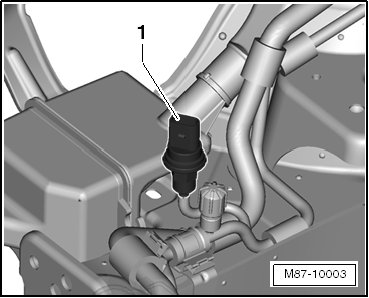

- Disconnect the connector from the high pressure sensor - 1 -.






- Remove the high pressure sensor - 1 - from the refrigerant pipe.

• Replace O-ring - 2 -.

• The high pressure sensor - 1 - may be installed in a different location near the condenser depending on the engine version.
