High Pressure Sensor / Switch: Locations

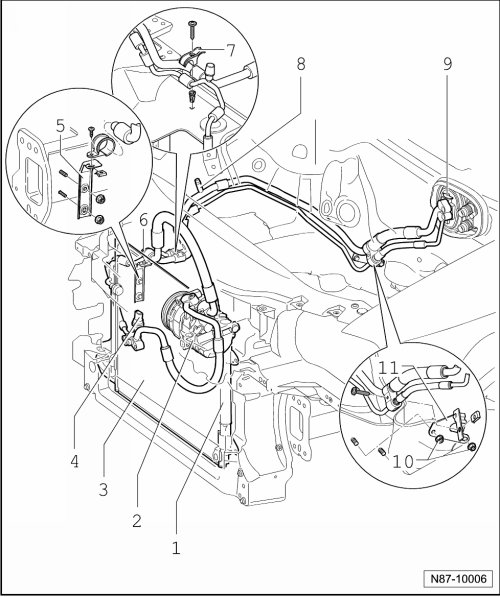

Component Locations: Climate / Climatronic Systems

High Pressure Sensor







2 - A/C compressor

3 - Condenser

4 - High Pressure Sensor -G65- => [ High Pressure Sensor ] See Image Below.

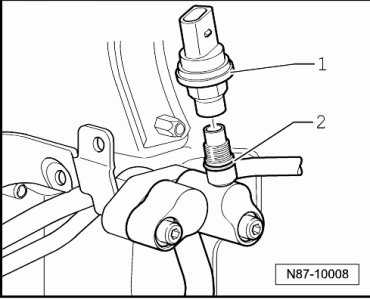

High Pressure Sensor






1 - High Pressure Sensor -G65-
