Front ABS Wheel Speed Sensor

Front ABS Wheel Speed Sensor

Removing

- Raise the vehicle.

- Release and remove the connector - 1 -.

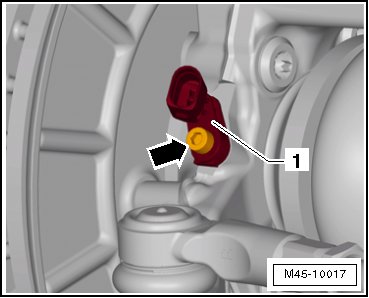

- Remove bolt - arrow -.






- Remove the front wheel speed sensor - 1 - from the wheel bearing housing.

Installing

Install in reverse order of removal. Note the following:

- Clean the inside of the hole and coat it with hot bolt paste (G 052 112 A3) before installing the front wheel speed sensor.

- Install the front wheel speed sensor into the hole in the wheel bearing housing and tighten it.

Tightening Specification
