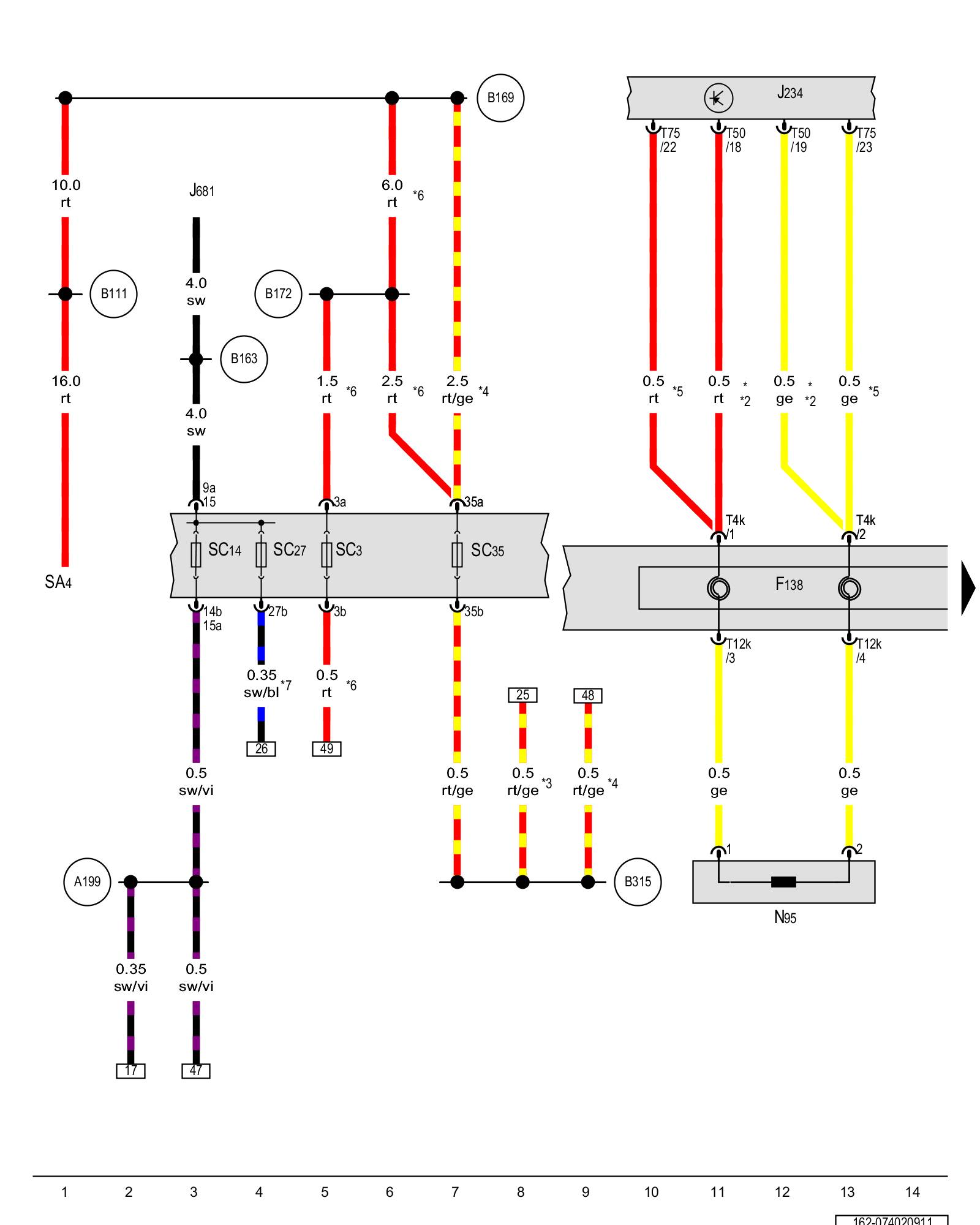

Diagram 74/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag spiral spring/return spring with slip ring, Airbag control module, Driver airbag igniter, Fuse 35 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F138 - Airbag spiral spring/return spring with slip ring Airbag System Overview

J234 - Airbag control module Overview Of Control Modules

J681 - Terminal 15 power supply relay 2

N95 - Driver airbag igniter Airbag System Overview

SC3 - Fuse 3 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SC14 - Fuse 14 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC27 - Fuse 27 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC35 - Fuse 35 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T4k - 4-pin connector

T12k - 12-pin connector

T50 - 50-pin connector

T75 - 75-pin connector

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B111) - Positive connection 1 (30a) (in interior wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B172) - Positive connection 4 (30) (in interior wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

* - Only for vehicles with China equipment

*2 - only for Mexico

*3 - Through May 2011

*4 - Omitted as a running change

*5 - Depending on equipment

*6 - Running change

*7 - From June 2011

Next Diagram 74/3 (Tracks 15-28)
