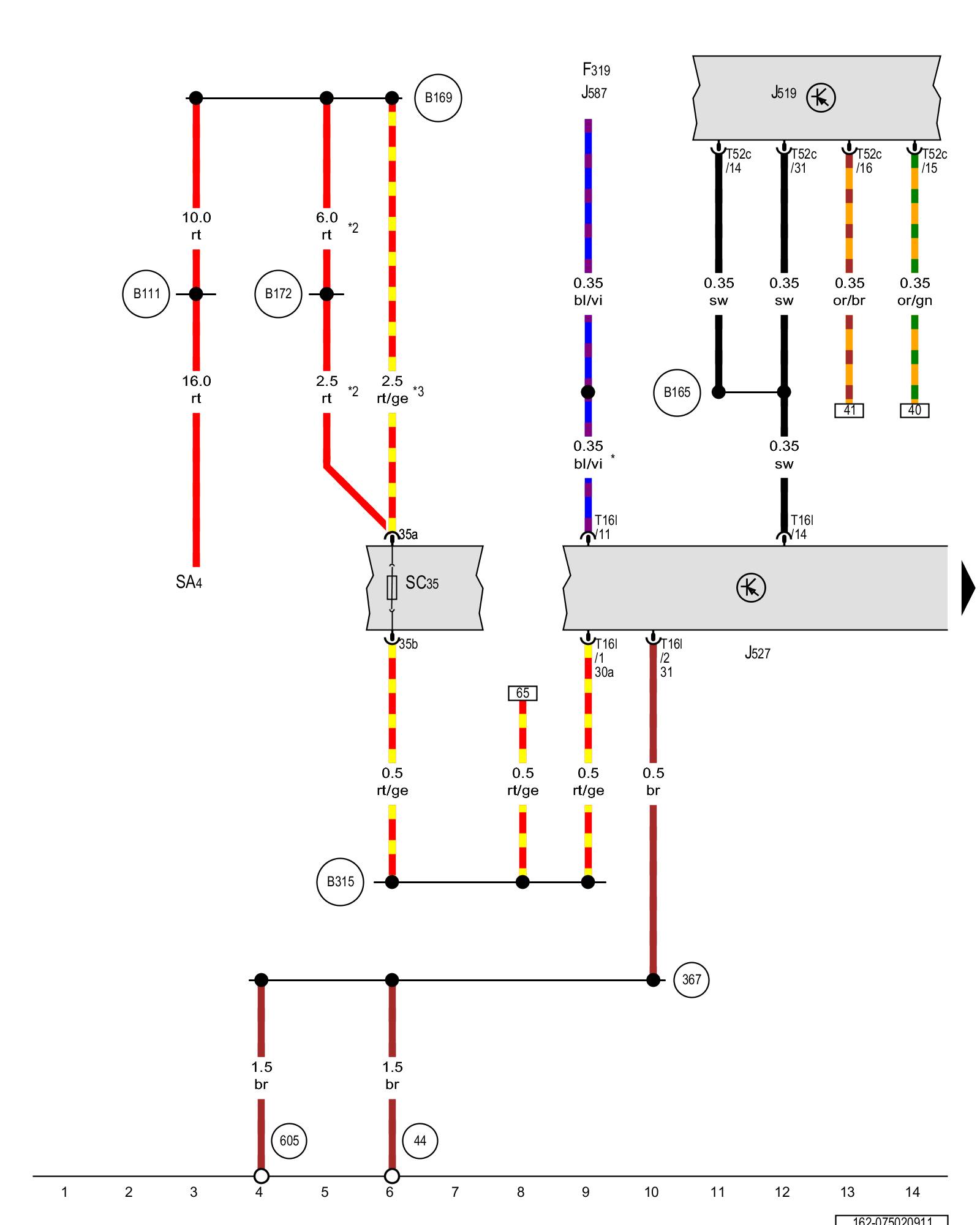

Diagram 75/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F319 - Selector lever park position lock switch Selector Mechanism Assembly Overview Tiptronic Switch -F189- /Selector Lever -E313- and Selector Lever Park Position Lock Switch -F319-

J519 - Vehicle electrical system control module Overview Of Control Modules

J527 - Steering column electronics control module Overview Of Control Modules Steering Column Electronics Control Module -J527-

J587 - Selector lever sensor system control module Selector Mechanism Assembly Overview

SA4 - Fuse 4 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SC35 - Fuse 35 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T10s - 10-pin connector

T16l - 16-pin connector

T52c - 52-pin connector Overview Of Control Modules

(44) - Ground connection on A-pillar, lower left Locations

(367) - Ground connection 2 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(B111) - Positive connection 1 (30a) (in interior wiring harness)

(B165) - Positive connection 2 (15) (in interior wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B172) - Positive connection 4 (30) (in interior wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

* - Only for vehicles with DSG transmission

*2 - Running change

*3 - Omitted as a running change

Next Diagram 75/3 (Tracks 15-28)
