Center Seat Belt

Center Seat Belt

Removing

- Remove the rear bench seat. Refer to => [ Bench Seat ] Bench Seat.

- Remove rear shelf. Refer to => [ Rear Shelf ] Rear Shelf.

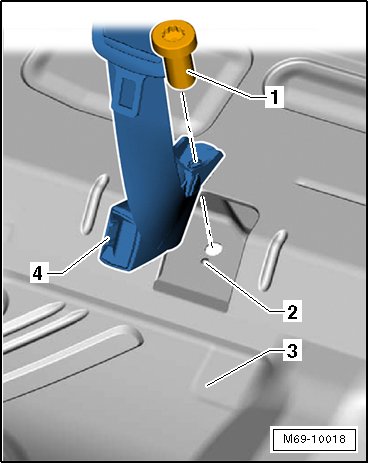

- Remove the bolt - 1 - (40 Nm) and remove the single seat belt latch - 4 - from the locking tab - 2 - on the body - 3 -.






- Unlock the backrest and fold it forward.

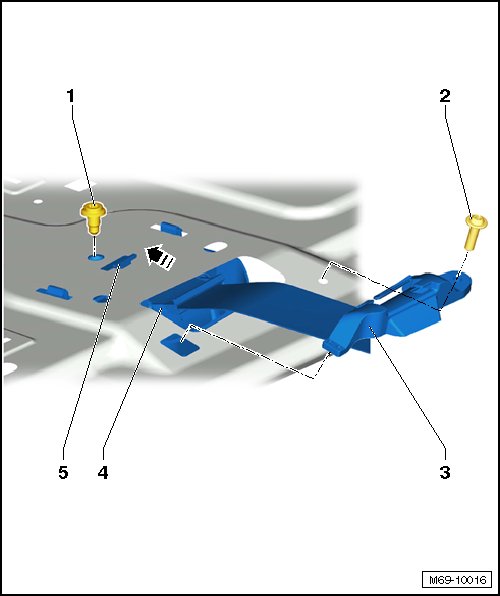

- Remove the bolt - 2 - (8 Nm) and the seat belt guide - 3 - from the rear wall upper section.

- Remove the bolt - 1 - (40 Nm).

- Unhook the retainer - 5 - for the automatic belt retractor - 4 - in - direction of arrow -.

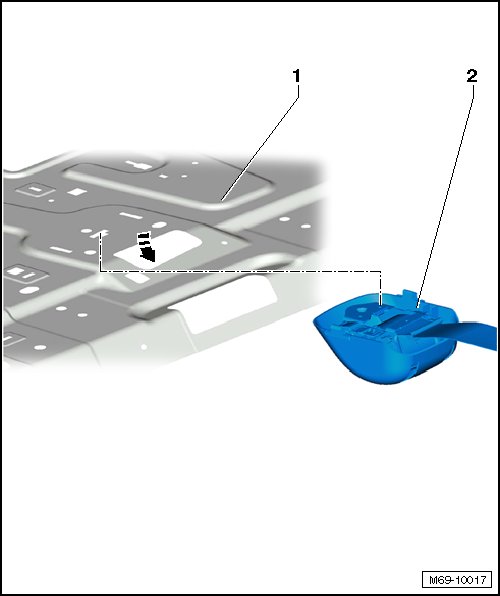

- From inside the luggage compartment, remove the entire center seat belt - 2 - from the rear wall upper section - 1 - in - direction of arrow -.






Installation

- Install in reverse order of removal.
