Climatronic control unit -J255-







Control Modules

Climatronic control unit -J255-

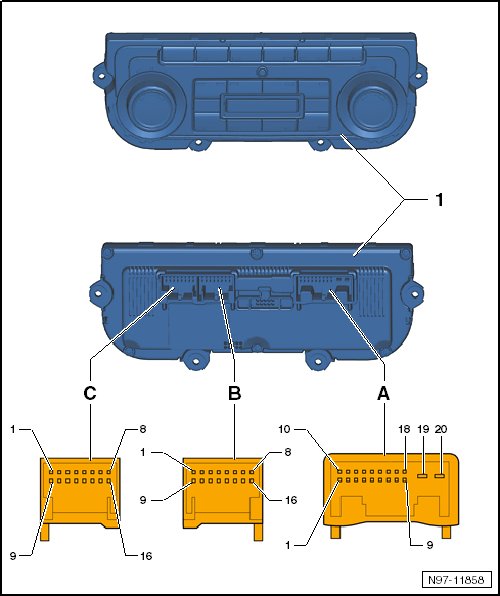

1 Climatronic control unit -J255-
Component Location:
• in the center console
Pin Connectors:
• -A20-pin connector -T20c- on wiring harness
• -B16-pin connector -T16g- on wiring harness
• -C16-pin connector -T16e- on wiring harness
