Fuel Injectors: N30, N31, N32, N33, N83

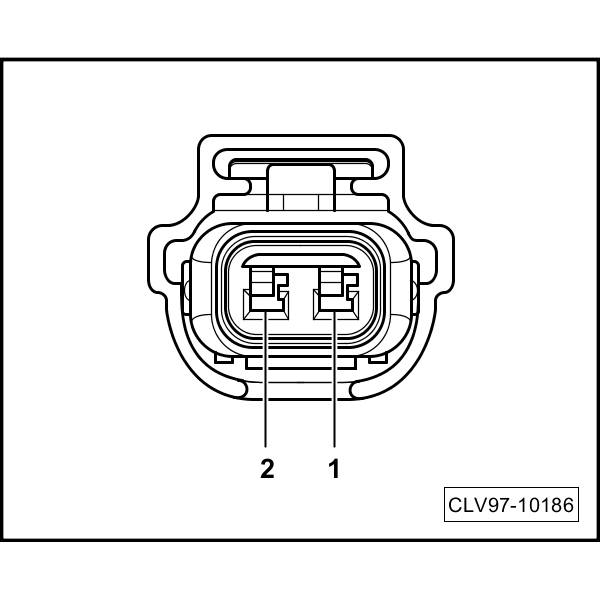

Engine Management System - Connector Views

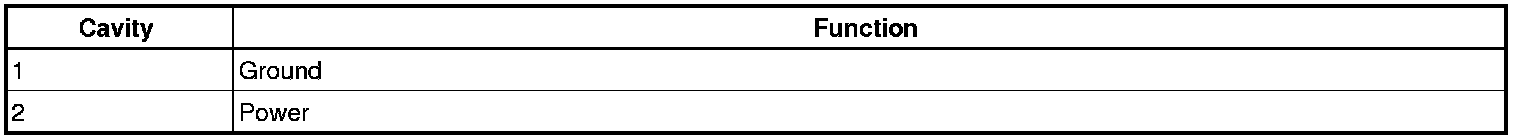

fuel injectors: N30, N31, N32, N33, N83



TDI engine












Gasoline engines
