Leak Detection Pump: Service and Repair

Leak Detection Pump (V144)

Removing

- Remove the right rear wheel housing liner.

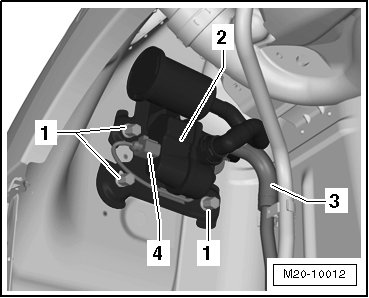

- Disconnect the connector - 4 -.






- Remove the cap nuts - 1 -.

- Remove the leak detection pump (LDP) - 2 - and bracket from the stud bolts and remove the connecting line - 3 -. Push the connecting line out of the upper retainer.

Installing

Installation is performed in the reverse order of removal. When doing this note the following:

Tightening Specifications
