Diagram 50/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

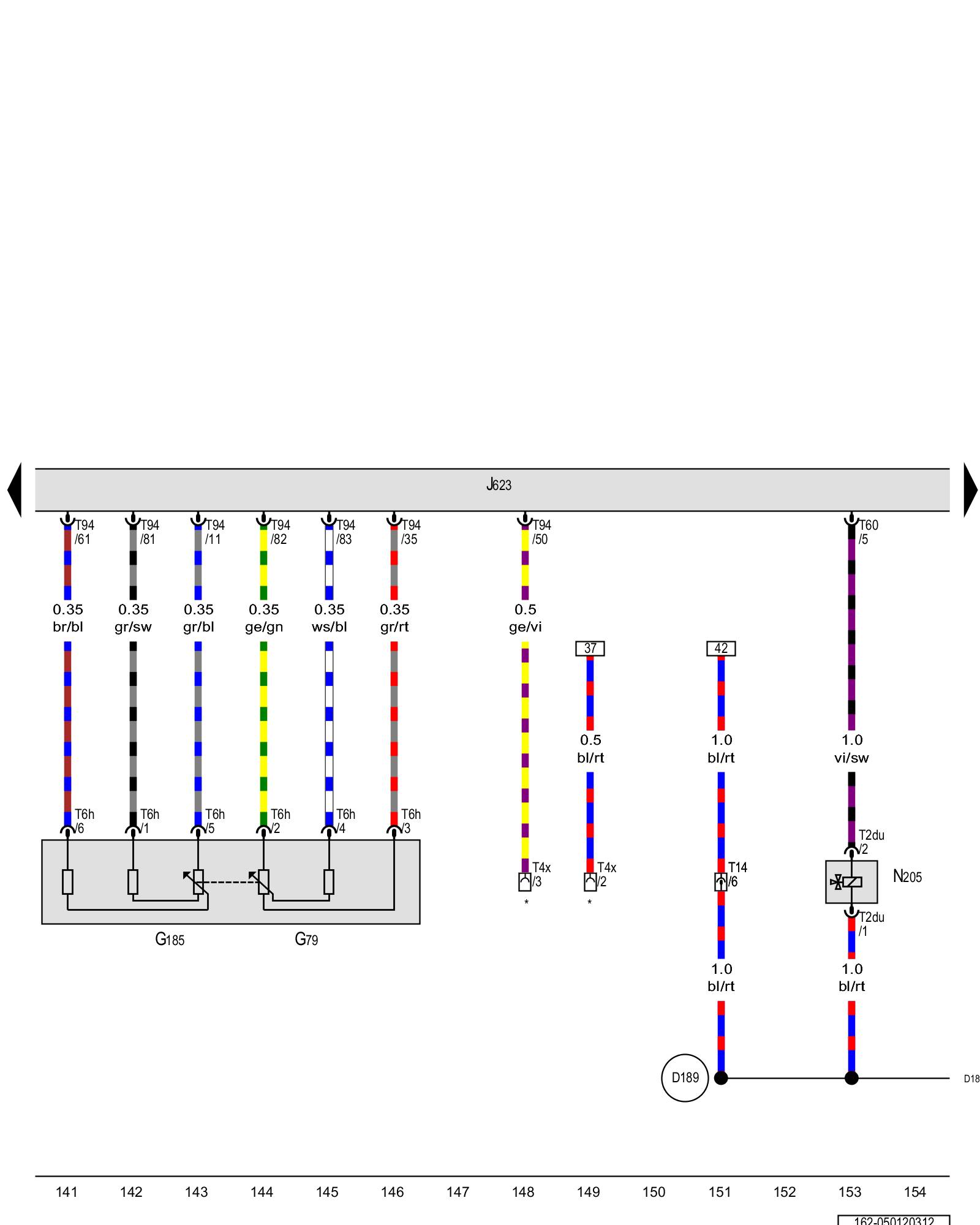

Accelerator pedal position sensor, Engine control module, Camshaft adjustment valve 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G79 - Accelerator pedal position sensor Locations [1][2]Accelerator Pedal Position Sensor

G185 - Accelerator pedal position sensor 2 Locations [1][2]Accelerator Pedal Position Sensor

J623 - Engine control module Overview Of Control Modules

N205 - Camshaft adjustment valve 1 Locations [1][2]Diagrams

T2du - Double connector

T4x - 4-pin connector Overview Of Connector Stations and Connectors

T6h - 6-pin connector

T14 - 14-pin connector Overview Of Connector Stations and Connectors

T60 - 60-pin connector

T94 - 94-pin connector

(D189) - Connection 87a (in engine wiring harness)

* - Coolant fan connection
