Diagram 50/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

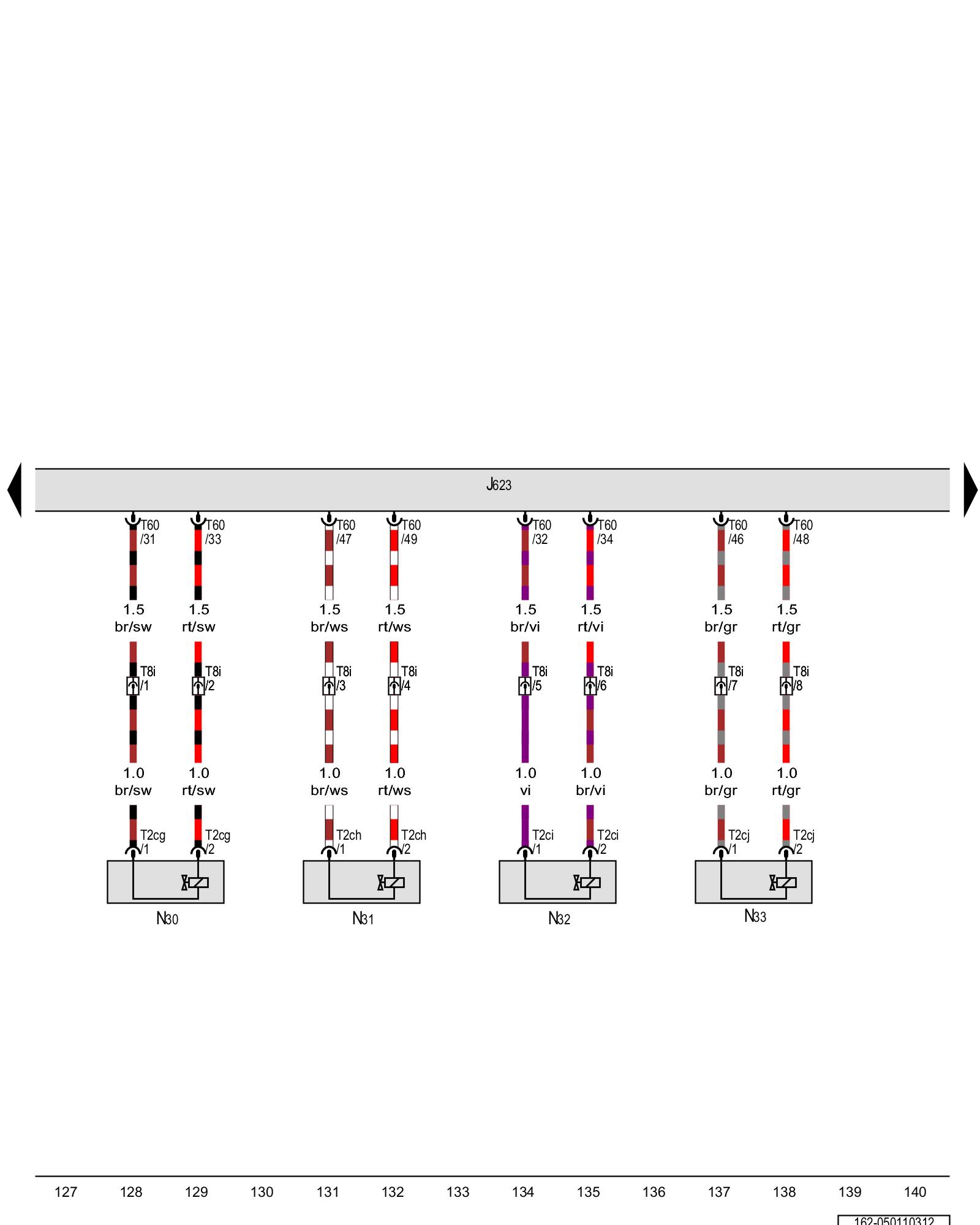

Engine control module, Cylinder 1 fuel injector, Cylinder 2 fuel injector, Cylinder 3 fuel injector, Cylinder 4 fuel injector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Overview Of Control Modules

N30 - Cylinder 1 fuel injector Locations Fuel Injectors: N30, N31, N32, N33, N83

N31 - Cylinder 2 fuel injector Locations Fuel Injectors: N30, N31, N32, N33, N83

N32 - Cylinder 3 fuel injector Locations Fuel Injectors: N30, N31, N32, N33, N83

N33 - Cylinder 4 fuel injector Locations Fuel Injectors: N30, N31, N32, N33, N83

T2cg - Double connector

T2ch - Double connector

T2ci - Double connector

T2cj - Double connector

T8i - 8-pin connector

T60 - 60-pin connector
